Main Specifications

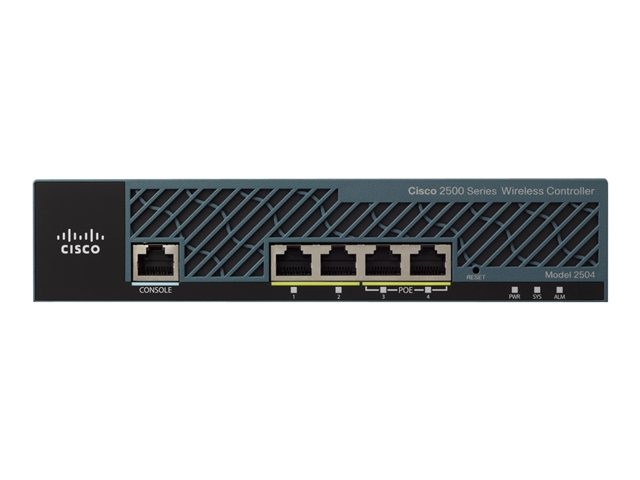

| Product Description | Cisco 2504 Wireless Controller - network management device |
| Device Type | Network management device |
| License Qty | 5 access points |
| Enclosure Type | External - 1U |
| Dimensions (WxDxH) | 8 in x 10.7 in x 1.7 in |
| Ports Qty | 4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Features | DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, IPv6 support, Intrusion Prevention System (IPS), SNTP support, Wi-Fi Multimedia (WMM) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), CAPWAP support |
| Power | AC 120/230 V ( 50/60 Hz ) |
| General | |
| Device Type | Network management device |
| Height (Rack Units) | 1U |
| Width | 8 in |
| Depth | 10.7 in |
| Height | 1.7 in |
| Processor / Memory / Storage | |
| Hard Drive | None. |
| Networking | |
| Form Factor | External |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Switching Protocol | Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Features | DHCP support, BOOTP support, ARP support, VLAN support, Syslog support, IPv6 support, Intrusion Prevention System (IPS), SNTP support, Wi-Fi Multimedia (WMM) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), CAPWAP support |
| Encryption Algorithm | DES, Triple DES, RSA, RC4, MD5, 128-bit WEP, 40-bit WEP, IKE, SSL, TLS, SHA-1, TLS 1.0, 104-bit WEP, TKIP, WPA, WPA2, PKI, AES-CCMP, AES-CCM, AES-CBC |
| Authentication Method | RADIUS, X.509 certificates, TACACS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n |
| Expansion / Connectivity | |
| Interfaces | 1 x management - console - RJ-45 2 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | VCCI, EN 60950, ICES-003, UL 60950-1 Second Edition, FCC Part 15.107, FCC Part 15.109 |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
