Details
Main Specifications

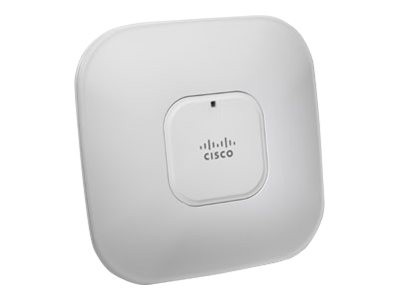

| Product Description | Cisco Aironet 1142 Controller-based AP - wireless access point |
| Device Type | Wireless access point |
| Enclosure Type | External |
| Dimensions (WxDxH) | 8.7 in x 8.7 in x 1.9 in |
| Weight | 2.3 lbs |
| RAM Installed ( Max ) | 128 MB |
| Flash Memory Installed (Max) | 32 MB |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Features | Power over Ethernet (PoE), MIMO technology, Wi-Fi Multimedia (WMM) support, Cisco M-Drive technology, ClientLink technology |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Width | 8.7 in |
| Depth | 8.7 in |
| Height | 1.9 in |
| Weight | 2.3 lbs |
| Processor / Memory / Storage | |
| RAM Installed ( Max ) | 128 MB |
| Flash Memory Installed (Max) | 32 MB |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Status Indicators | Active, error, status |
| Features | Power over Ethernet (PoE), MIMO technology, Wi-Fi Multimedia (WMM) support, Cisco M-Drive technology, ClientLink technology |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Authentication Method | MS-CHAP v.2, EAP-FAST |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n |
| Antenna | |
| Antenna | Internal integrated |
| Antenna Qty | 2 |
| Expansion / Connectivity | |
| Interfaces | 1 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management - console - RJ-45 |
| Miscellaneous | |
| MTBF | 390,000 hour(s) |
| Compliant Standards | VCCI, ICES-003, CSA 22.2 No. 60950, EN 300.328, EN 301.489.1, RSS-210, FCC Part 15, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, EN 301.893, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, ARIB STD-T33 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
