Details
Main Specifications

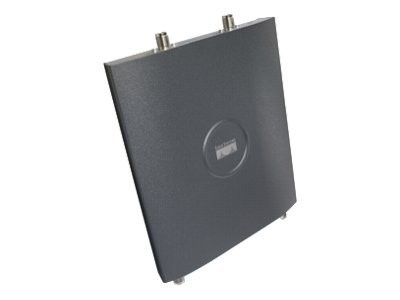

| Product Description | Cisco Aironet 1242AG - wireless access point |
| Device Type | Wireless access point |
| Enclosure Type | External |
| Dimensions (WxDxH) | 6.6 in x 8.5 in x 1.1 in |
| Weight | 2 lbs |
| RAM Installed ( Max ) | 32 MB |
| Flash Memory Installed (Max) | 16 MB flash |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g |
| Remote Management Protocol | SNMP, Telnet, HTTPS |
| Features | Auto-sensing per device, BOOTP support, Lightweight Access Point Protocol (LWAPP) support |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Manufacturer Warranty | 1 year warranty |
| General | |
| Device Type | Wireless access point |
| Width | 6.6 in |
| Depth | 8.5 in |
| Height | 1.1 in |
| Weight | 2 lbs |
| Processor / Memory / Storage | |
| RAM Installed ( Max ) | 32 MB |
| Flash Memory Installed (Max) | 16 MB flash |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 54 Mbps |
| Line Coding Format | CCK, OFDM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g |
| Remote Management Protocol | SNMP, Telnet, HTTPS |
| Max Range Indoors | 460 ft |
| Max Range Open Space | 950 ft |
| Status Indicators | Active, error, status |
| Features | Auto-sensing per device, BOOTP support, Lightweight Access Point Protocol (LWAPP) support |
| Encryption Algorithm | LEAP, AES, 128-bit WEP, 40-bit WEP, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Authentication Method | Secure Shell (SSH), MS-CHAP |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED |
| Expansion / Connectivity | |
| Interfaces | 2 x antenna - RP-TNC 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 1 x management - console - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 13 Watt |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
| Service & Support Details | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% |
