Details
Main Specifications

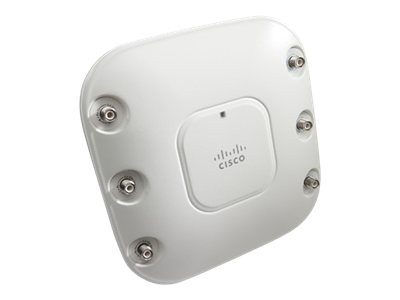

| Product Description | Cisco Aironet 1260 Series Access Point (Controller-based) - wireless access point |
| Device Type | Wireless access point |
| Enclosure Type | External - indoor |
| Dimensions (WxDxH) | 8.7 in x 8.7 in x 1.9 in |
| Weight | 2.3 lbs |
| Localization | Argentina, Colombia, Canada, Puerto Rico, Uruguay, Peru, Paraguay, Ecuador, Costa Rica, United States |
| RAM Installed ( Max ) | 128 MB |
| Flash Memory Installed (Max) | 32 MB flash |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Remote Management Protocol | SNMP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Features | Auto-sensing per device, power over Ethernet (PoE), MIMO technology, Wi-Fi Multimedia (WMM) support, Cisco M-Drive technology |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Wireless access point |
| Ruggedized Design | Indoor |
| Width | 8.7 in |
| Depth | 8.7 in |
| Height | 1.9 in |
| Weight | 2.3 lbs |
| Localization | Argentina, Colombia, Canada, Puerto Rico, Uruguay, Peru, Paraguay, Ecuador, Costa Rica, United States |
| Processor / Memory / Storage | |
| RAM Installed ( Max ) | 128 MB |
| Flash Memory Installed (Max) | 32 MB flash |
| Hard Drive | None. |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 300 Mbps |
| Line Coding Format | CCK |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Spread Spectrum Method | OFDM |
| Remote Management Protocol | SNMP |
| Frequency Band | 2.4 GHz, 5 GHz |
| Status Indicators | Status |
| Features | Auto-sensing per device, power over Ethernet (PoE), MIMO technology, Wi-Fi Multimedia (WMM) support, Cisco M-Drive technology |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11h, IEEE 802.11n |
| Expansion / Connectivity | |
| Interfaces | 1 x network / power - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x management - console - RJ-45 6 x antenna |
| Miscellaneous | |
| Mounting Kit | Included |
| Compliant Standards | VCCI, ICES-003, EN 300.328, EN 301.489.1, EN 301.489.17, FCC Part 15.247, RSS-210, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part 15.109, EN 301.893, FCC Part 15.407, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, ARIB STD-T33, CSA C22.2 No. 60950-1 |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime Limited warranty - replacement - 10 days |
| Environmental Parameters | |
| Min Operating Temperature | -4 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
