APC Smart-UPS 3000 LCD

Be the first to review this product

Regular Price: $1,250.00

Special Price: $1,054.99

Availability: In stock

OR

Quick Overview

UPS - AC 120 V - 2700 Watt - 3000 VA - RS-232, USB - 10 output connector(s)


Mfg. Part Number: SMT3000

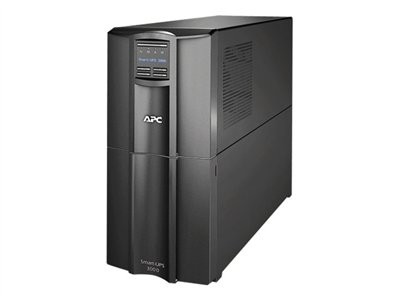

APC Smart-UPS 3000 LCD

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Main Specifications

Product Description APC Smart-UPS 3000 LCD - UPS - 2700 Watt - 3000 VA
Device Type UPS - external
Dimensions (WxDxH) 7.7 in x 21.5 in x 17 in
Weight 116.2 lbs
Input Voltage AC 120 V
Output Voltage AC 120 V ± 5% ( 47 - 53 / 57-63 Hz )
Power Capacity 2700 Watt / 3000 VA
Output connector(s) 8 x power NEMA 5-15 ¦ 2 x power NEMA 5-20
Battery Lead acid
Run Time (Up To) 6 min at full load
Networking RS-232, USB
Manufacturer Warranty 3 years warranty




General
Device Type UPS - external
Width 7.7 in
Depth 21.5 in
Height 17 in
Weight 116.2 lbs
Enclosure Color Black

Power Device
UPS Technology Line interactive
Input Voltage AC 120 V
Input Voltage Range AC 82 - 144 V
Input Voltage Range (Adjustable) AC 75 - 154 V
Frequency Required 50/60 Hz
Input Connector(s) Power NEMA L5-30
Output Voltage AC 120 V ± 5% ( 47 - 53 / 57-63 Hz )
Power Output Connectors Details 8 x power NEMA 5-15
2 x power NEMA 5-20
Power Capacity 2700 Watt / 3000 VA
Output Waveform Sinewave
Surge Suppression Standard
Surge Response Time 0 ns
Surge Energy Rating 530 Joules

Battery
Technology Lead acid
Run Time (Up To) 6 min at full load
Recharge Time 3 hour(s)

Networking
Remote Management Interface RS-232, USB

Expansion / Connectivity
Interfaces 1 x management - RS-232 - 9 pin D-Sub (DB-9)
1 x USB
Expansion Slot(s) 1 SmartSlot

Miscellaneous
Cables Included 1 x serial cable - external
1 x USB cable - external
1 x power cable - integrated - 6 ft
Features Audible alarm, LCD display, noise filtering
Compliant Standards CSA, UL 1778, RoHS Exemption 7b, FCC Part 15 A

Manufacturer Warranty
Service & Support 3 years warranty
Service & Support Details Limited warranty - 3 years
Limited warranty - batteries - 2 years

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 95%
Sound Emission 45 dBA

Dimensions & Weight (Shipping)
Shipping Width 15 in
Shipping Depth 30 in
Shipping Height 22 in
Shipping Weight 134.3 lbs
