Details
Main Specifications

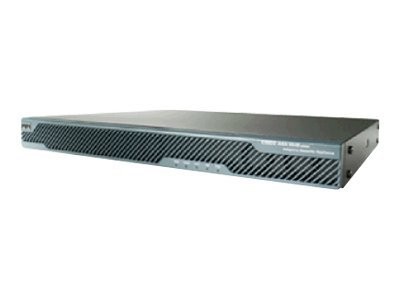

| Product Description | Cisco ASA 5520 Firewall Edition - security appliance |
| Device Type | Security appliance |
| Enclosure Type | Rack-mountable - 1U |
| Dimensions (WxDxH) | 17.5 in x 13.2 in x 1.7 in |
| Weight | 20.1 lbs |
| RAM Installed ( Max ) | 2 GB |
| Flash Memory Installed (Max) | 256 MB flash |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput : 450 Mbps ¦ VPN throughput : 225 Mbps ¦ Connection rate : 12000 connections per second |
| Capacity | Concurrent sessions : 280000 ¦ IPSec VPN peers : 750 ¦ SSL VPN peers : 2 ¦ Virtual interfaces (VLANs) : 100 |
| Features | Firewall protection, VPN support, load balancing, VLAN support, High Availability |
| Power | AC 120/230 V ( 50/60 Hz ) |
| General | |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Installed Modules Qty (Max) | 0 ( 1 ) |
| Width | 17.5 in |
| Depth | 13.2 in |
| Height | 1.7 in |
| Weight | 20.1 lbs |
| Processor / Memory / Storage | |
| RAM Installed ( Max ) | 2 GB |
| Flash Memory Installed (Max) | 256 MB flash |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput : 450 Mbps VPN throughput : 225 Mbps Connection rate : 12000 connections per second |
| Capacity | Concurrent sessions : 280000 IPSec VPN peers : 750 SSL VPN peers : 2 Virtual interfaces (VLANs) : 100 |
| Features | Firewall protection, VPN support, load balancing, VLAN support, High Availability |
| Encryption Algorithm | DES, Triple DES, AES |
| Expansion / Connectivity | |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot 1 memory |
| Interfaces | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 1 x management - console - RJ-45 2 x Hi-Speed USB - 4 pin USB Type A 1 x serial - auxiliary - RJ-45 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, UL 1950, VCCI Class A ITE, IEC 60950, EN 61000-3-3, CSA 22.2 No. 950, EN55022 Class A, ACA TS001, AS/NZS 3260, FCC Part 15 |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Provided | 190 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
