Details
Main Specifications

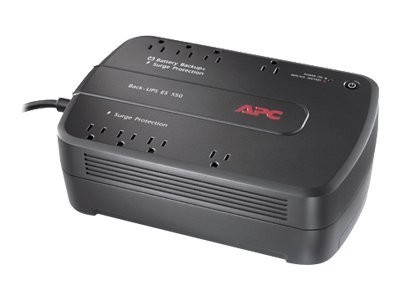

| Product Description | APC Back-UPS ES 550 - UPS - 330 Watt - 550 VA |
| Device Type | UPS - external |
| Dimensions (WxDxH) | 12 in x 7 in x 3.3 in |
| Weight | 13 lbs |
| Localization | Canada |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ( 60 Hz ) |
| Power Capacity | 330 Watt / 550 VA |
| Output connector(s) | 4 x power NEMA 5-15 ( UPS and surge ) ¦ 4 x power NEMA 5-15 ( surge ) |
| Battery | Lead acid |
| Battery Form Factor | Internal |
| Batteries Qty | 1 |
| Run Time (Up To) | 3.3 min at full load |
| Networking | USB |
| Remote Management Protocol | SNMP, Telnet, HTTP, SSH |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Device Type | UPS - external |
| Battery Enclosure Type | Internal |
| Width | 12 in |
| Depth | 7 in |
| Height | 3.3 in |
| Weight | 13 lbs |
| Enclosure Color | Black |
| Localization | Canada |
| Power Device | |
| UPS Technology | Off-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 88 - 139 V |
| Frequency Required | 60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Output Voltage | AC 120 V ( 60 Hz ) |
| Power Output Connectors Details | 4 x power NEMA 5-15 ( UPS and surge ) 4 x power NEMA 5-15 ( surge ) |
| Power Capacity | 330 Watt / 550 VA |
| Dataline Surge Protection | Phone line - RJ-11 |
| Output Waveform | Stepped approximation to a sinewave |
| Surge Suppression | Standard |
| Surge Energy Rating | 365 Joules |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 3.3 min at full load |
| Recharge Time | 24 hour(s) |
| Networking | |
| Remote Management Interface | USB |
| Remote Management Protocol | SNMP, Telnet, HTTP, SSH |
| Expansion / Connectivity | |
| Interfaces | 1 x management - USB |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 6 ft 1 x USB cable - external |
| Features | Audible alarm, LED indicators, firmware upgradable |
| Compliant Standards | FCC Class B certified, cUL, NOM, UL 1449, UL 1778, UL 497A, UL 497B, FCC Part 68, FCC Part 15 |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
| Sound Emission | 45 dBA |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.2 in |
| Shipping Depth | 5.5 in |
| Shipping Height | 9.5 in |
| Shipping Weight | 14.3 lbs |
