Details
Main Specifications

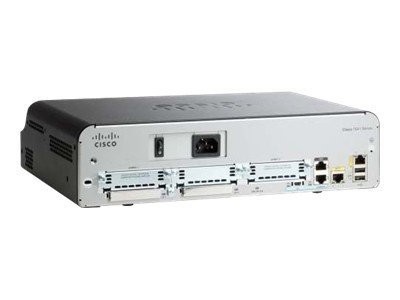

| Product Description | Cisco 1941 Security Bundle - router - desktop |
| Device Type | Router |
| Enclosure Type | Desktop - modular - 2U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP, RMON |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 13.5 in x 11.5 in x 3.5 in |
| Weight | 11.9 lbs |
| Manufacturer Warranty | 1 year warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop - modular - 2U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | LEAP, MD5, SSL, TLS, PEAP, TKIP, WPA, WPA2 |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP), EAP-FAST |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
| RAM | 256 MB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Status Indicators | Link activity, power |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 USB : 2 x 4 pin USB Type A |
| Expansion Slot(s) | 2 (total) / 2 (free) x EHWIC 2 (total) / 1 (free) x CompactFlash Card 1 (total) / 1 (free) x ISM |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous | |
| Width | 13.5 in |
| Depth | 11.5 in |
| Height | 3.5 in |
| Weight | 11.9 lbs |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, AS/NZS 3548, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
| Software / System Requirements | |
| Software Included | Cisco IOS Security |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
| Service & Support Details | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% |
