Details
Main Specifications

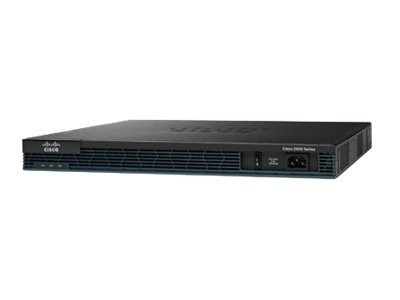

| Product Description | Cisco 2901 Voice Bundle - router - voice / fax module - desktop |
| Device Type | Router - voice / fax module |
| Enclosure Type | Desktop - modular - 1U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP, RMON |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.3 in x 17.2 in x 1.8 in |
| Weight | 13.4 lbs |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop - modular - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP, RMON |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag |
| RAM | 512 MB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Status Indicators | Link activity, power |
| Communications | |
| Type | Voice / fax module |
| Digital Ports Qty | 16 |
| IP Telephony | |
| Voice Codecs | G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726 |
| Expansion / Connectivity | |
| Interfaces | 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 USB : 2 x 4 pin USB Type A |
| Expansion Slot(s) | 4 (total) / 4 (free) x HWIC 2 (total) / 1 (free) x PVDM 2 (total) / 1 (free) x CompactFlash Card 1 (total) / 1 (free) x expansion slot |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous | |
| Width | 17.3 in |
| Depth | 17.2 in |
| Height | 1.8 in |
| Weight | 13.4 lbs |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, AS/NZS 3548, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
| Software / System Requirements | |
| Software Included | Cisco IOS Unified Communications |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% |
