Main Specifications

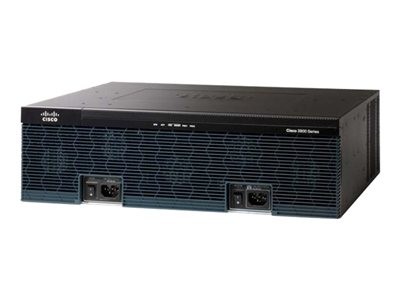

| Product Description | Cisco 3945E Integrated Services Router - router - desktop, rack-mountable |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable - modular - 3U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions : 450 ¦ Cisco Unified SRST sessions : 1500 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| Power | AC 120/230 V ( 47/63 Hz ) |
| Dimensions (WxDxH) | 18.7 in x 17.2 in x 5.2 in |
| Weight | 39 lbs |
| Manufacturer Warranty | 90 days warranty |
| General | |
| Device Type | Router |
| Enclosure Type | Desktop, rack-mountable - modular - 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions : 450 Cisco Unified SRST sessions : 1500 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | SSL |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| RAM | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| Status Indicators | Link activity, power |
| Expansion / Connectivity | |
| Interfaces | 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 Hi-Speed USB : 2 x 4 pin USB Type A 2 x SFP (mini-GBIC) |
| Expansion Slot(s) | 3 (total) / 3 (free) x EHWIC 3 (total) / 3 (free) x PVDM 2 (total) / 1 (free) x CompactFlash Card 1 (total) / 1 (free) x expansion slot 4 (total) / 4 (free) x service module (SM) |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 47/63 Hz ) |
| Miscellaneous | |
| Width | 18.7 in |
| Depth | 17.2 in |
| Height | 5.2 in |
| Weight | 39 lbs |
| Rack Mounting Kit | Included |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
| Software / System Requirements | |
| OS Provided | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | 90 days warranty |
| Service & Support Details | Limited warranty - advance parts replacement - 90 days - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% |
