Details
Main Specifications

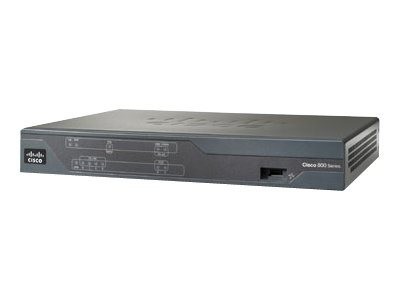

| Product Description | Cisco 881 Ethernet Security Router - router - desktop |
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Capacity | IPSec VPN tunnels : 20 |
| Network / Transport Protocol | L2TP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Features | NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 12.8 in x 9.8 in x 1.7 in |
| Weight | 5.5 lbs |
| General | |
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Capacity | IPSec VPN tunnels : 20 |
| Network / Transport Protocol | L2TP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Encryption Algorithm | LEAP, DES, Triple DES, SSL, PEAP, TKIP, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | RADIUS, TACACS+ |
| Features | NAT support, VPN support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, IPv6 support, High Availability, Intrusion Prevention System (IPS), URL filtering, Stateful Failover, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), WAN failover, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, Bidirectional Forwarding Detection (BFD) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x |
| RAM | 256 MB (installed) / 768 MB (max) - DDR2 SDRAM - SO DIMM 200-pin |
| Flash Memory | 128 MB |
| Status Indicators | Port status, power |
| Expansion / Connectivity | |
| Interfaces | LAN : 4 x 10Base-T/100Base-TX - RJ-45 Management : 1 x console - RJ-45 WAN : 1 x 10Base-T/100Base-TX - RJ-45 USB : 1 x 4 pin USB Type A |
| Expansion Slot(s) | 1 (total) / 1 (free) x memory - SO DIMM 200-pin |
| Power | |
| Power Device | Power adapter - external - 60 Watt |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous | |
| Width | 12.8 in |
| Depth | 9.8 in |
| Height | 1.7 in |
| Weight | 5.5 lbs |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN50082-1, EN55022 Class B, ICES-003 Class B, EN 61000-6-1, AS/NZ 3548 Class B, EN 60555-2, FCC CFR47 Part 15, EN300-386, FCC CFR47 Part 15 B, VCCI V-3 |
| Software / System Requirements | |
| OS Provided | Cisco IOS Advanced Security |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% (non-condensing) |
