Main Specifications

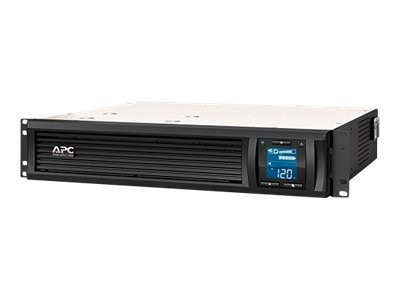

| Product Description | APC Smart-UPS C 1000VA 2U LCD - UPS - 600 Watt - 1000 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Dimensions (WxDxH) | 17 in x 18.7 in x 3.5 in |
| Weight | 45.2 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% ( 50/60 Hz ) |
| Power Capacity | 600 Watt / 1000 VA |
| Output connector(s) | 6 x power NEMA 5-15 |
| Battery | Lead acid |
| Battery Form Factor | Internal |
| Batteries Qty | 1 |
| Run Time (Up To) | 6 min at full load |
| Networking | USB |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Battery Enclosure Type | Internal |
| Height (Rack Units) | 2U |
| Width | 17 in |
| Depth | 18.7 in |
| Height | 3.5 in |
| Weight | 45.2 lbs |
| Enclosure Color | Black |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 93 - 130 V |
| Input Voltage Range (Adjustable) | AC 85 - 136 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Output Voltage | AC 120 V ± 5% ( 50/60 Hz ) |
| Power Output Connectors Details | 6 x power NEMA 5-15 |
| Power Capacity | 600 Watt / 1000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Standard |
| Surge Energy Rating | 455 Joules |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 6 min at full load 16 min at half load |
| Recharge Time | 3 hour(s) |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management - USB - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 8 ft 1 x USB cable - external |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic shut down reset, automatic self-test, hot-swappable batteries |
| Compliant Standards | CSA, NOM, UL 1449, UL 1778, RoHS Exemption 7b, REACH |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - parts and labor - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 46 dBA |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.4 in |
| Shipping Depth | 23.7 in |
| Shipping Height | 9.9 in |
| Shipping Weight | 49.2 lbs |
