Details
Main Specifications

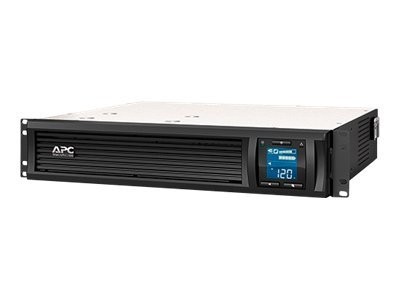

| Product Description | APC Smart-UPS C 1500VA 2U LCD - UPS - 900 Watt - 1500 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Dimensions (WxDxH) | 17 in x 18.7 in x 3.5 in |
| Weight | 61.3 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% ( 50/60 Hz ) |
| Power Capacity | 900 Watt / 1500 VA |
| Output connector(s) | 6 x power NEMA 5-15 |
| Battery | Lead acid |
| Battery Form Factor | Internal |
| Batteries Qty | 1 |
| Run Time (Up To) | 7 min at full load |
| Networking | USB |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Battery Enclosure Type | Internal |
| Height (Rack Units) | 2U |
| Width | 17 in |
| Depth | 18.7 in |
| Height | 3.5 in |
| Weight | 61.3 lbs |
| Enclosure Color | Black |
| Power Device | |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 93 - 130 V |
| Input Voltage Range (Adjustable) | AC 85 - 136 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Output Voltage | AC 120 V ± 5% ( 50/60 Hz ) |
| Power Output Connectors Details | 6 x power NEMA 5-15 |
| Power Capacity | 900 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Standard |
| Surge Energy Rating | 455 Joules |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 165 min at 50 Watts 93 min at 100 Watts 48 min at 200 Watts 31 min at 300 Watts 22 min at 400 Watts 16 min at 500 Watts 13 min at 600 Watts 10 min at 700 Watts 8 min at 800 Watts 7 min at full load 19 min at half load |
| Recharge Time | 3 hour(s) |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management - USB - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 8 ft 1 x USB cable - external |
| Rack Mounting Kit | Included |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic shut down reset, automatic self-test, hot-swappable batteries |
| Compliant Standards | CSA, NOM, UL 1449, UL 1778, RoHS Exemption 7b, REACH |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - parts and labor - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 46 dBA |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.4 in |
| Shipping Depth | 23.7 in |
| Shipping Height | 9.9 in |
| Shipping Weight | 68.2 lbs |
