Details
Main Specifications

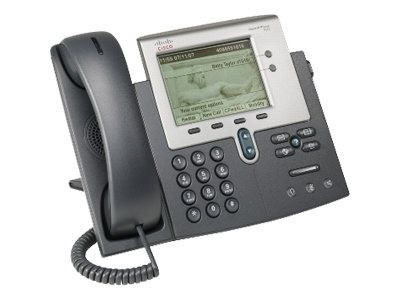

| Product Description | Cisco Unified IP Phone 7942G - VoIP phone |
| Product Type | VoIP phone |
| Main Features | Integrated Ethernet switch, Power over Ethernet (PoE) support |
| VoIP Protocols | SCCP, SIP |
| Voice Codecs | G.722, G.729a, G.729ab, G.711u, G.711a, iLBC |
| Speakerphone | Yes ( digital duplex ) |
| Voice Mail Capability | Yes |
| Display | LCD display - monochrome |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX |
| Body Color | Silver, dark gray |
| General | |
| Product Type | VoIP phone |
| Body Color | Silver, dark gray |
| Body Material | ABS plastic |
| Phone Features | |
| Dialer Type | Keypad |
| Dialer Location | Base |
| Conference Call Capability | Yes |
| Speakerphone | Yes ( digital duplex ) |
| Voice Mail Capability | Yes |
| Menu Operation | Yes |
| Function Buttons | Speakerphone button, headset button , menu navigation keys, mute button |
| Programmable Buttons Qty | 2 |
| Volume Control | Yes |
| Ringer Control | Yes |
| Ring Tones | 24 |
| Firmware Upgradable | Yes |
| Additional Functions | Web browser |
| IP Telephony | |
| Main Features | Integrated Ethernet switch, Power over Ethernet (PoE) support |
| VoIP Protocols | SCCP, SIP |
| Voice Codecs | G.722, G.729a, G.729ab, G.711u, G.711a, iLBC |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
| IP Address Assignment | DHCP, static |
| Security | 128 bit AES |
| Network Protocols | TFTP |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX |
| Voice Features | Echo cancellation (ECN) |
| Network Features | Class 2 PoE |
| Display | |
| Type | LCD display - monochrome |
| Display Location | Base |
| Diagonal Size | 5" |
| Display Resolution | 320 x 222 pixels |
| Display Information | Date, time |
| Miscellaneous | |
| Connections | Headset jack |
| Hearing Aid Compatible | Yes |
| Placing / Mounting | Wall-mountable, table-top |
| Dimensions & Weight (Base) | |
| Width | 10.5 in |
| Depth | 6 in |
| Height | 8 in |
| Weight | 3.5 lbs |
