Details
Main Specifications

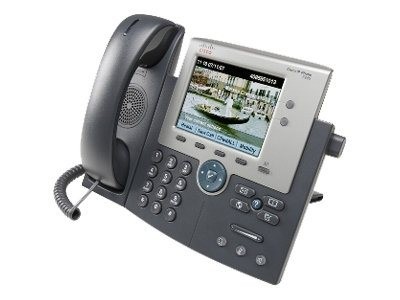

| Product Description | Cisco Unified IP Phone 7945G - VoIP phone |
| Product Type | VoIP phone |
| Main Features | Multiple VoIP protocol support, integrated Ethernet switch, Power over Ethernet (PoE) support |
| VoIP Protocols | SCCP, SIP |
| Voice Codecs | G.722, G.729a, G.729ab, G.711u, G.711a, iLBC |
| Multiline Operation Capability | 2-line operation |
| Speakerphone | Yes ( digital duplex ) |
| Voice Mail Capability | Yes |
| Display | LCD display - color |
| Display Features | Wallpaper, backlit |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
| Body Color | Silver, dark gray |
| General | |
| Product Type | VoIP phone |
| Body Color | Silver, dark gray |
| Body Material | ABS plastic |
| Phone Features | |
| Dialer Type | Keypad |
| Dialer Location | Base |
| Multiline Operation Capability | 2-line operation |
| Conference Call Capability | Yes |
| Speakerphone | Yes ( digital duplex ) |
| Voice Mail Capability | Yes |
| Menu Operation | Yes |
| Function Buttons | Speakerphone button, headset button , menu navigation keys, mute button |
| Programmable Buttons Qty | 2 |
| Volume Control | Yes |
| Ringer Control | Yes |
| Ring Tones | 24 |
| Firmware Upgradable | Yes |
| Additional Functions | Web browser |
| IP Telephony | |
| Main Features | Multiple VoIP protocol support, integrated Ethernet switch, Power over Ethernet (PoE) support |
| VoIP Protocols | SCCP, SIP |
| Voice Codecs | G.722, G.729a, G.729ab, G.711u, G.711a, iLBC |
| Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
| IP Address Assignment | DHCP, static |
| Security | 128 bit AES |
| Network Protocols | TFTP |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
| Voice Features | Echo cancellation (ECN) |
| Network Features | Class 3 PoE |
| Display | |
| Type | LCD display - color |
| Display Location | Base |
| Diagonal Size | 5" |
| Display Resolution | 320 x 240 pixels |
| Color Depth | 16-bit (65000 colors) |
| Display Information | Date, time |
| Features | Wallpaper, backlit |
| Miscellaneous | |
| Connections | 1 x headset jack |
| Hearing Aid Compatible | Yes |
| Placing / Mounting | Wall-mountable, table-top |
| Dimensions & Weight (Base) | |
| Width | 10.5 in |
| Depth | 6 in |
| Height | 8 in |
| Weight | 3.5 lbs |
