Details
Main Specifications

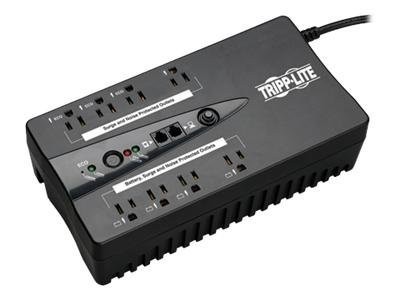

| Product Description | Tripp Lite ECO Series ECO550UPS - UPS - 300 Watt - 550 VA |
| Device Type | UPS - external |
| Weight | 6.6 lbs |
| Load Rating | Individual PC |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ( 60 Hz ) |
| Power Capacity | 300 Watt / 550 VA |
| Output connector(s) | 4 x power NEMA 5-15 ( UPS and surge ) ¦ 4 x power NEMA 5-15 ( surge ) |
| Battery Form Factor | Internal |
| Run Time (Up To) | 3.5 min at full load |
| Networking | USB |
| Dimensions (WxDxH) | 5.7 in x 10.9 in x 3.1 in |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Device Type | UPS - external |
| Battery Enclosure Type | Internal |
| Power Device | |
| Load Rating | Individual PC |
| UPS Technology | Off-line |
| Input Voltage | AC 120 V |
| Input Voltage Margin | ± 5% |
| Frequency Required | 60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 4 x power NEMA 5-15 ( UPS and surge ) 4 x power NEMA 5-15 ( surge ) |
| Output Voltage | AC 120 V ( 60 Hz ) |
| Power Capacity | 300 Watt / 550 VA |
| Dataline Surge Protection | Phone line - RJ-11 |
| Surge Suppression | Yes |
| Surge Energy Rating | 420 Joules |
| Battery | |
| Run Time (Up To) | 3.5 min at full load |
| Recharge Time | 15 hours |
| Networking | |
| Remote Management Interface | USB |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 6 ft 1 x USB cable - external |
| Equipment Protection Value | 100000 US Dollars |
| Features | Audible alarm, LED indicators |
| Compliant Standards | CSA, NOM, UL 1778, FCC Part 68, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert (free download) |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 5.7 in |
| Depth | 10.9 in |
| Height | 3.1 in |
| Weight | 6.6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13 in |
| Shipping Depth | 8 in |
| Shipping Height | 4.1 in |
| Shipping Weight | 7.1 lbs |
