Details
Main Specifications

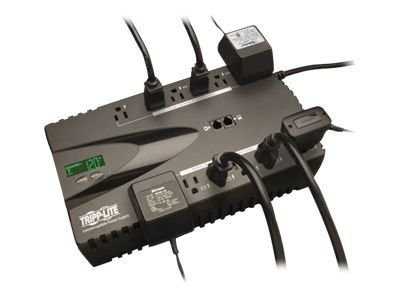

| Product Description | Tripp Lite ECO Series ECO850LCD - UPS - 425 Watt - 850 VA |
| Device Type | UPS - external |
| Weight | 9.5 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 115/120 V + 5% / - 5% ( 60 Hz ) |
| Power Capacity | 425 Watt / 850 VA |
| Output connector(s) | 6 x power NEMA 5-15 ( UPS and surge ) ¦ 6 x power NEMA 5-15 ( surge ) |
| Run Time (Up To) | 2.8 min at full load |
| Networking | USB |
| Dimensions (WxDxH) | 12 in x 7 in x 3.5 in |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | Off-line |
| Input Voltage | AC 120 V |
| Input Connector(s) | Power NEMA 5-15 |
| Power Output Connectors Details | 6 x power NEMA 5-15 ( UPS and surge ) 6 x power NEMA 5-15 ( surge ) |
| Output Voltage | AC 115/120 V + 5% / - 5% ( 60 Hz ) |
| Max Electric Current | 10 A |
| Power Capacity | 425 Watt / 850 VA |
| Dataline Surge Protection | Phone line - RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Circuit Protection | Circuit breaker |
| Battery | |
| Voltage Provided | 12 V |
| Run Time (Up To) | 2.8 min at full load 13 min at half load |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 6 ft 1 x USB cable - external |
| Equipment Protection Value | 100000 US Dollars |
| Features | Wall mountable , audible alarm, LCD display, cold-start function, disconnect switch |
| Compliant Standards | CSA, NOM, UL 1778, FCC Part 15 B, FCC Part 68, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert (free download) |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 12 in |
| Depth | 7 in |
| Height | 3.5 in |
| Weight | 9.5 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15 in |
| Shipping Depth | 10 in |
| Shipping Height | 4.5 in |
| Shipping Weight | 10.1 lbs |
