Details
Main Specifications

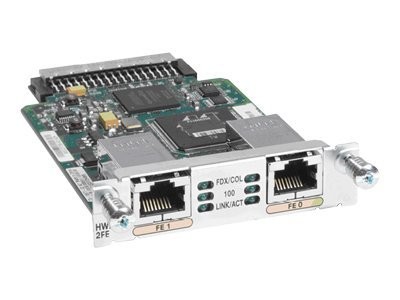

| Product Description | Cisco High-Speed WAN Interface Card expansion module - 2 ports |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Interface (Bus) Type | HWIC |
| Dimensions (WxDxH) | 3.1 in x 4.7 in x 0.7 in |
| Weight | 2.6 oz |
| Ports Qty | 2 ports |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Network / Transport Protocol | TCP/IP, L2TP, PPPoE |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x |
| Designed For | Cisco 1921, 1921 4-pair, 1921 ADSL2+, 1941, 2901, 2911, 2921, 2951, 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E |
| General | |
| Device Type | Expansion module - 2 ports |
| Form Factor | Plug-in module |
| Interface (Bus) Type | HWIC |
| Width | 3.1 in |
| Depth | 4.7 in |
| Height | 0.7 in |
| Weight | 2.6 oz |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Network / Transport Protocol | TCP/IP, L2TP, PPPoE |
| Status Indicators | Link activity, collision status, port duplex mode, link OK, 100M device connected |
| Features | Auto-sensing per device, DHCP support, auto-negotiation, auto-uplink (auto MDI/MDI-X), IPv6 support |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x |
| Expansion / Connectivity | |
| Interfaces | 2 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Compatible Slots | 1 x HWIC |
| Miscellaneous | |
| Compliant Standards | TUV GS, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC950, UL 1950, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15, ICES-003 Class A, EN300-386 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | |
| Designed For | Cisco 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 Integrated Services Router, 1921 SEC T1 Bundle, 1941 Integrated Services Router, 1941 Security Bundle, 1941 Security Router, 1941 SRE Bundle, 2901 Integrated Services Router, 2901 Security Bundle, 2901 SRE Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2911 Integrated Services Router, 2911 Security Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2921 Integrated Services Router, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2951 Integrated Services Router, 2951 Security Bundle, 2951 SRE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 3825 Integrated Services Router Branch Office in a Box Bundle, 3825 Integrated Services Router Secure WAN Optimization Bundle, 3825 Integrated Services Router WAN Optimization Bundle, 3825 Voice Bundle, 3825 Voice Security Bundle, 3845 Integrated Services Router Branch Office in a Box Bundle, 3845 Integrated Services Router WAN Optimization Bundle, 3845 Secure WAN Optimization Bundle, 3845 Security Bundle, 3845 V3PN Bundle, 3845 Voice Bundle, 3845 Voice Security Bundle, 3925 Integrated Services Router, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925E Integrated Services Router, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945 Integrated Services Router, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945E Integrated Services Router, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle |
