Details
Main Specifications

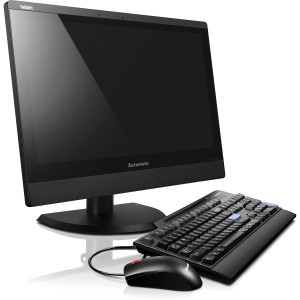

| Product Description | Lenovo ThinkCentre M93z 10AD - Core i5 4570S 2.9 GHz - 4 GB - 500 GB - LED 23" |
| Type | Personal computer |
| Platform Technology | Intel vPro Technology |
| Form Factor | All-in-one |
| Localization | English |
| Processor | 1 x Intel Core i5 (4th Gen) 4570S / 2.9 GHz ( 3.6 GHz ) ( Quad-Core ) |
| Processor Socket | LGA1150 Socket |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 4 GB (installed) / 16 GB (max) - DDR3 SDRAM - 1600 MHz - PC3-12800 |
| Storage Controller | SATA ( SATA 6Gb/s ) |
| Hard Drive | 1 x 500 GB - SATA 6Gb/s |
| Optical Storage | DVD-Writer |
| Monitor | 23" - LED - 1920 x 1080 ( Full HD ) - 16:9 - Multi-Touch |
| Graphics Controller | Intel HD Graphics 4600 |
| Camera | Integrated - 2 Megapixel |
| Audio Output | Integrated |
| Networking | GigE, 802.11b, 802.11g, 802.11n, Bluetooth 4.0 |
| Power | AC 120/230 V ( 50/60 Hz ) |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition / Windows 8 Pro 64-bit Edition - pre-installed: Windows 7 |
| Dimensions (WxDxH) | 22.4 in x 9.7 in x 21.7 in |
| Weight | 28.9 lbs |
| Manufacturer Selling Program | TopSeller |
| Environmental Standards | ENERGY STAR Qualified , EPEAT Gold |
| Manufacturer Warranty | 3 years warranty - on-site |
| General | |
| Platform Technology | Intel vPro Technology |
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | Stereo speakers |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Color | Business black |
| Localization | English |
| Processor / Chipset | |
| CPU | Intel Core i5 (4th Gen) 4570S / 2.9 GHz |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| CPU Socket | LGA1150 Socket |
| Chipset Type | Intel Q87 Express |
| Cache Memory | |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | |
| Installed Size | 4 GB / 16 GB (max) |
| Technology | DDR3 SDRAM |
| Memory Speed | 1600 MHz |
| Memory Specification Compliance | PC3-12800 |
| Form Factor | SO DIMM 204-pin |
| Features | Dual channel memory architecture |
| Configuration Features | 1 x 4 GB |
| Hard Drive | |
| Type | HDD |
| Capacity | 1 x 500 GB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Storage Controller | |
| Type | 1 x SATA - integrated |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | DVD-Writer - SATA |
| Monitor | |
| Monitor Type | LED - IPS - Multi-Touch |
| Diagonal Size | 23" |
| Native Resolution | 1920 x 1080 ( Full HD ) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 250 cd/m2 |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Anti-glare, monitor stand |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | Intel HD Graphics 4600 |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Type | Integrated |
| Compliant Standards | High Definition Audio, Dolby Advanced Audio v2 |
| Speakers | 2 x right / left channel |
| Camera | |
| Form Factor | Integrated |
| Sensor Resolution | 2 Megapixel |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Keyboard Name | Preferred Pro USB |
| Interface | USB |
| Mouse | |
| Technology | Optical |
| Interface | USB |
| Networking | |
| Ethernet Controller | Intel I217LM |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Centrino Wireless-N 2230 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0 |
| Features | Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Slots | 1 (total) / 0 (free) x PCIe Mini Card 2 (total) / 1 (free) x SO DIMM 204-pin 1 (total) / 0 (free) x CPU |
| Interfaces | 6 x USB 3.0 ( 2 front, 4 rear ) 1 x microphone ( 1 in front ) 1 x headphones/microphone ( 1 in front ) 1 x VGA input 1 x DisplayPort output 1 x LAN (Gigabit Ethernet) |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), administrator password, hard drive password, power-on password, boot without keyboard or mouse, USB port control, boot sequence control, Intel Active Management Technology (iAMT) |
| Mounting Interface | 100 x 100 mm |
| Compliant Standards | RoHS, GREENGUARD, TUV GM, EuP, UL Environmental SPC Gold |
| Manufacturer Selling Program | TopSeller |
| Power | |
| Device Type | Power supply |
| Nominal Voltage | AC 120/230 V ( 50/60 Hz ) |
| Power Provided | 150 Watt |
| Operating System / Software | |
| OS Provided | Microsoft Windows 7 Professional 64-bit Edition / Windows 8 Pro 64-bit Edition |
| Preinstalled OS | Windows 7 |
| Environmental Standards | |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Qualified | Yes |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width | 22.4 in |
| Depth | 9.7 in |
| Height | 21.7 in |
| Weight | 28.9 lbs |
