Details
Main Specifications

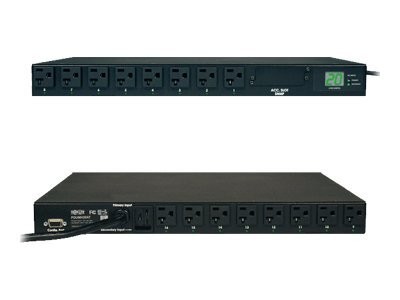

| Product Description | Tripp Lite Metered PDU with Automatic Transfer Switching PDUMH20AT - power distribution unit - 2400 VA |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 1U |
| Weight | 12.1 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ( 50/60 Hz ) |
| Power Capacity | 2400 VA |
| Output connector(s) | 16 x power NEMA 5-15/20 |
| Dimensions (WxDxH) | 17.5 in x 14.5 in x 1.7 in |
| Manufacturer Warranty | 2 years warranty |
| Designed For | Tripp Lite PDUMH30AT; Auto Transfer Switch / Metered PDU PDUMH30HVAT; Metered PDU with Automatic Transfer Switching PDUMH15AT; SmartOnLine SU2200RTXL2Ua, SU2200RTXLCD2U, SU2200XLa, SU2200XLCD, SU8000RT3U1TF, SU8000RT4U; SmartPro 3000RM2UN, SMART2200RM2UN |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Color | Black |
| Power Device | |
| Input Voltage | AC 120 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 2 x power NEMA L5-20 |
| Power Output Connectors Details | 16 x power NEMA 5-15/20 |
| Output Voltage | AC 120 V ( 50/60 Hz ) |
| Max Electric Current | 20 A |
| Power Capacity | 2400 VA |
| Expansion / Connectivity | |
| Interfaces | 1 x management - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - external - 12 ft 1 x power cable - integrated - 12 ft 2 x power connector adapter - 5.9 in |
| Features | Wall mountable , current meter, amp meter, LED indicators, Automatic Transfer Switch (ATS) |
| Compliant Standards | NOM, RoHS |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 14.5 in |
| Height | 1.7 in |
| Weight | 12.1 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 22.5 in |
| Shipping Depth | 23.5 in |
| Shipping Height | 6.3 in |
| Shipping Weight | 16.3 lbs |
| Compatibility Information | |
| Designed For | Tripp Lite PDUMH30AT Tripp Lite Auto Transfer Switch / Metered PDU PDUMH30HVAT Tripp Lite Metered PDU with Automatic Transfer Switching PDUMH15AT Tripp Lite SmartOnLine SU2200RTXL2Ua, SU2200RTXLCD2U, SU2200XLa, SU2200XLCD, SU8000RT3U1TF, SU8000RT4U Tripp Lite SmartPro 3000RM2UN, SMART2200RM2UN |
