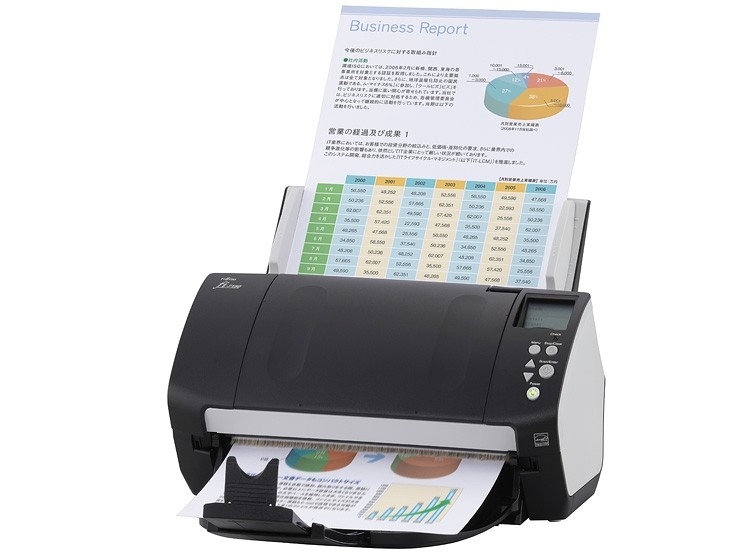

Fujitsu Fi-7160, Fi-7260, Fi-7180, Fi-7280 Product Brochure
| Description | fi-7160 | |
|---|---|---|
| Supported operating systems | Windows® 8 (32-bit / 64-bit), Windows® 7 (32-bit / 64-bit), Windows Vista® (32-bit / 64-bit), Windows® XP (32-bit / 64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 (32-bit / 64-bit) | |
| Scanner Type | Automatic Document Feeder(ADF) | |
| Scanning modes | Simplex / Duplex, Color / Grayscale / Monochrome | |
| Image Sensor Type | Color CCD (Charge-coupled device) x 2 (front x 1, back x 1, Flatbed x 1) | |
| Light Source | White LED Array x 2 (front x 1, back x 1, Flatbed x 1) | |
| Multi-feed detection | Ultrasonic multi-feed detection sensor x 1, Paper detection sensor | |
| Document size | Maximum | 216 mm x 355.6 mm (8.5 in. x 14 in.) |
| Minimum *1 | 50.8 mm x 54 mm (2 in. x 2.13 in.) (Landscape / Portrait) | |
| Long paper scanning (Maximum) *2 |
216 mm x 5,588 mm (8.5 in. x 220 in.) | |
| Paper weight (Thickness) *3 | 27g/m2 to 413 g/m2 (7.2 lbs to 112 lbs) 127 g/m2to 209 g/m2 (34 lb to 56 lb) for A8 size 1.4 mm or less for plastic card *4 |
|
| Scanning speed (A4, Portrait) *5 | Color *6 | Simplex: 60 ppm (200 dpi / 300 dpi) Duplex: 120 ipm (200 dpi / 300 dpi) |
| Grayscale *6 | ||
| Monochrome *7 | ||
| Paper chute capacity *8 | 80 sheets (A4: 80g/m2 or 20lb) (Active loadable ADF) | |
| Expected daily volume | 4,000 sheets/day | |
| Background colors | White / Black (Selectable) | |
| Optical resolution | 600 dpi | |
| Output resolution *9 | Color (24-bit) | 50 dpi to 600 dpi (adjustable by 1dpi increments), 1200 dpi *10 |
| Grayscale (8-bit) | ||
| Monochrome (1-bit) | ||
| Output format | Color | 24-bit |
| Grayscale | 8-bit | |
| Monochrome | 1-bit | |
| Internal video processing | 65,536 levels (16-bit) | |
| Interface *11 | USB3.0 (USB2.0 is also available) | |
| Connector shape | B type | |
| Image processing function | Hardware-based | Dropout color (R, G, B), Deskew cropping |
| Software-based | Multi-image, Auto color, Blank page skip, i-DTC, Advanced-DTC, Simplified-DTC, Error diffusion, Dither, Moire removal, Image emphasis, Color cleanup, Dropout color (None, Specified, Color saturation), sRGB, Punch hole removal, Tab cropping, Upper lower separation |
|
| Power requirement | AC 100 to 240 V ± 10% | |
| Power consumption | Operating mode | 38 W or less |
| Sleep mode | 1.8 W or less | |
| Auto Standby (Off) mode | 0.35 W or less | |
| Operating environment | Temperature | 5°C to 35°C (42°F to 95°F) |
| Relative humidity | 20% to 80% (Non-condensing) | |
| Dimensions: Width x Depth x Height *12 | 300 mm x 170 mm x 163 mm (11.81 in. x 6.69 in. x 6.42 in.) Installation space: 400 mm x 700 mm x 380 mm (15.75 in. x 27.56 in. x 14.96 in.) |
|
| Weight | 4.2 kg (9.26 lb) | |
| Included software drivers | PaperStream IP (TWAIN/ ISIS) Driver, Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent | |
| Environmental compliance | ENERGY STAR® and RoHS | |
| Included items | ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM | |
