Details
Main Specifications

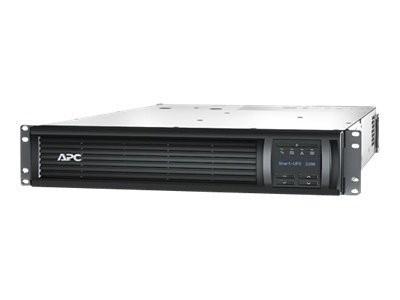

| Product Description | APC Smart-UPS 2200 LCD - UPS - 1.98 kW - 2200 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Dimensions (WxDxH) | 18.9 in x 26.9 in x 3.4 in |
| Weight | 93.3 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | 120 V |
| Power Capacity | 1.98 kW / 2200 VA |
| Output connector(s) | 6 x power NEMA 5-15 ¦ 2 x power NEMA 5-20 |
| Battery | Lead acid |
| Run Time (Up To) | 5.1 min at full load |
| Networking | RS-232, USB |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Width | 18.9 in |
| Depth | 26.9 in |
| Height | 3.4 in |
| Weight | 93.3 lbs |
| Enclosure Color | Black |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 143 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | Power NEMA 5-20 |
| Output Voltage | 120 V |
| Power Output Connectors Details | 6 x power NEMA 5-15 2 x power NEMA 5-20 |
| Power Capacity | 1.98 kW / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Standard |
| Surge Energy Rating | 530 Joules |
| Battery | |
| Technology | Lead acid |
| Run Time (Up To) | 5.1 min at full load 15.2 min at half load |
| Recharge Time | 3 hour(s) |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 1 x serial |
| Expansion Slot(s) | 1 SmartSlot |
| Miscellaneous | |
| Cables Included | 1 x serial cable 1 x USB cable 1 x power cable - integrated - 8 ft |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR) |
| Compliant Standards | FCC Class A certified, CSA, UL 1778, FCC Part 15, RoHS Exemption 7b, REACH |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 55 dBA |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.6 in |
| Shipping Depth | 38.6 in |
| Shipping Height | 10 in |
| Shipping Weight | 109.6 lbs |
