Details
Main Specifications

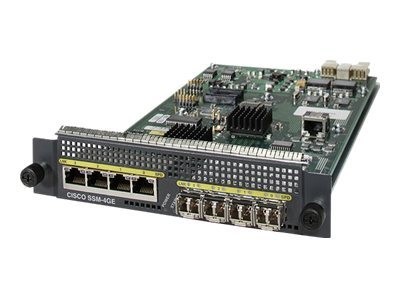

| Product Description | Cisco Security Services Module - expansion module - 4 ports |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Dimensions (WxDxH) | 6.8 in x 12.2 in x 1.7 in |
| Weight | 2 lbs |
| Ports Qty | 4 ports |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Designed For | ASA 5505 Firewall Edition Bundle, 5510 Appliance, 5510 DC Appliance, 5510 Firewall Edition, 5510 Security Plus Firewall Edition, 5520 Appliance, 5520 DC Appliance, 5520 Firewall Edition, 5540 Adaptive Security Appliance, 5540 Appliance, 5540 DC Appliance, 5540 Firewall Edition Bundle |
| General | |
| Device Type | Expansion module - 4 ports |
| Form Factor | Plug-in module |
| Width | 6.8 in |
| Depth | 12.2 in |
| Height | 1.7 in |
| Weight | 2 lbs |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Link activity, link OK, status |
| Expansion / Connectivity | |
| Expansion Slot(s) | 4 (total) / 4 (free) x SFP (mini-GBIC) |
| Interfaces | 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
| Compatibility Information | |
| Designed For | Cisco ASA 5505 Firewall Edition Bundle, 5510 Appliance, 5510 DC Appliance, 5510 Firewall Edition, 5510 Security Plus Firewall Edition, 5520 Appliance, 5520 DC Appliance, 5520 Firewall Edition, 5540 Adaptive Security Appliance, 5540 Appliance, 5540 DC Appliance, 5540 Firewall Edition Bundle |
