Details
Main Specifications

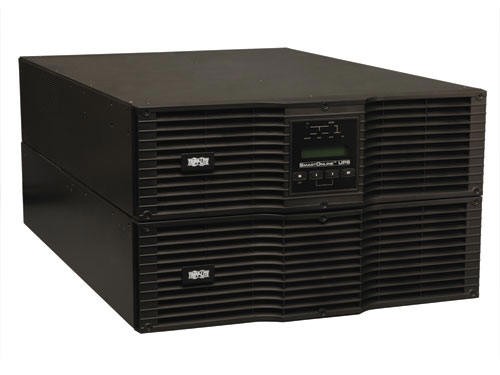

| Product Description | Tripp Lite SmartOnLine SU10000RT3UG - UPS - 9 kW - 10000 VA |
| Device Type | UPS - external |
| Rack Size | 6U |
| Weight | 55.1 lbs |
| Input Voltage | AC 200/208/220/230/240 V |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 9 kW / 10000 VA |
| Output connector(s) | 6 x power IEC 320 EN 60320 C19 |
| Battery Form Factor | Internal |
| Run Time (Up To) | 4 min |
| Networking | RS-232 |
| Dimensions (WxDxH) | 17.5 in x 25 in x 5.2 in |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - external |
| Battery Enclosure Type | Internal |
| Height (Rack Units) | 6U |
| Color | Attractive black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 156 - 276 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | Hardwire |
| Power Output Connectors Details | 6 x power IEC 320 EN 60320 C19 |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 9 kW / 10000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Battery | |
| Voltage Provided | AC 240 V |
| Run Time (Up To) | 4 min |
| Networking | |
| Remote Management Interface | RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm, LCD display, LED indicators |
| Compliant Standards | FCC Class A certified, CSA, NOM, UL 1778, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 25 in |
| Height | 5.2 in |
| Weight | 55.1 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 33.5 in |
| Shipping Depth | 23 in |
| Shipping Height | 42.1 in |
| Shipping Weight | 337.3 lbs |
