Details
Main Specifications

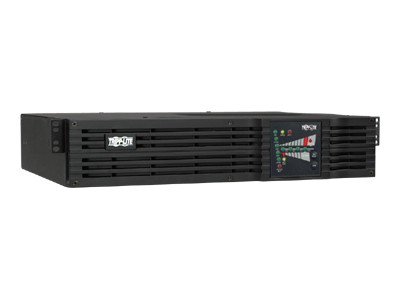

| Product Description | Tripp Lite SmartOnLine SU1000RTXL2Ua - UPS - 800 Watt - 1000 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 2U |
| Weight | 41 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 800 Watt / 1000 VA |
| Output connector(s) | 6 x power NEMA 5-15 |
| Battery Form Factor | Plug-in module |
| Run Time (Up To) | 6 min at full load |
| Dimensions (WxDxH) | 17.5 in x 13.5 in x 3.5 in |
| General | |
| Device Type | UPS - rack-mountable |
| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 2U |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 65 - 138 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 6 x power NEMA 5-15 |
| Output Voltage | AC 120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 800 Watt / 1000 VA |
| Dataline Surge Protection | Phone line - RJ-11 |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Run Time (Up To) | 6 min at full load |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - 4 pin USB Type B 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 10 ft |
| Features | Emergency power off, LED display |
| Compliant Standards | cUL, NOM |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 13.5 in |
| Height | 3.5 in |
| Weight | 41 lbs |
