Details
Main Specifications

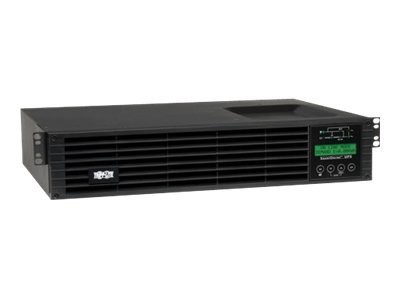

| Product Description | Tripp Lite SmartOnLine SU1000RTXLCD2U - UPS - 900 Watt - 1000 VA |
| Device Type | UPS - external |
| Rack Size | 2U |
| Weight | 29.1 lbs |
| Input Voltage | AC 100/110/115/120/127 V |
| Output Voltage | AC 100/110/115/120/127 V ( 50/60 Hz ) |
| Power Capacity | 900 Watt / 1000 VA |
| Output connector(s) | 6 x power NEMA 5-15 |
| Battery | Expandable |
| Run Time (Up To) | 4.8 min at full load |
| Networking | RS-232, USB |
| Included Accessories | Rack mounting ears |
| Dimensions (WxDxH) | 17.5 in x 12.5 in x 3.5 in |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 100/110/115/120/127 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 6 x power NEMA 5-15 |
| Output Voltage | AC 100/110/115/120/127 V ( 50/60 Hz ) |
| Power Capacity | 900 Watt / 1000 VA |
| Dataline Surge Protection | Network/phone line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 570 Joules |
| Battery | |
| Type | Expandable |
| Voltage Provided | 24 V |
| Run Time (Up To) | 14 min at half load 4.8 min at half load |
| Recharge Time | 3 hours |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB) - 4 pin USB Type B |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Included Accessories | Rack mounting ears |
| Cables Included | 1 x USB cable - external 1 x serial cable - external 1 x remote control cable - external 1 x power cable - external - 10 ft |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm, emergency power off, LCD display, internal bypass, LED indicators, cold-start function, cooling fan |
| Compliant Standards | CSA, UL 1778, FCC Part 15 B, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 45 dBA |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 12.5 in |
| Height | 3.5 in |
| Weight | 29.1 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20 in |
| Shipping Depth | 24 in |
| Shipping Height | 9.5 in |
| Shipping Weight | 41.4 lbs |
