Details
Main Specifications

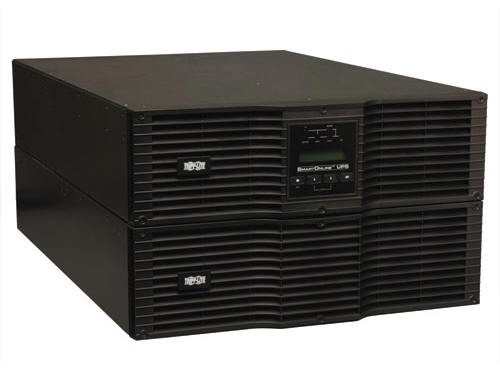

| Product Description | Tripp Lite SmartOnLine SU10KRT3UHV - UPS - 8 kW - 10000 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 6U |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 8 kW / 10000 VA |
| Output connector(s) | Hardwire |
| Battery Form Factor | Rack-mountable |
| Run Time (Up To) | 8 min at full load |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Battery Enclosure Type | Rack-mountable |
| Height (Rack Units) | 6U |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage Range | AC 156 - 276 V |
| Input Connector(s) | Hardwire |
| Power Output Connectors Details | Hardwire |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Max Electric Current | 63 A |
| Power Capacity | 8 kW / 10000 VA |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Voltage Provided | 240 V |
| Run Time (Up To) | 8 min at full load |
| Recharge Time | 4 hours |
| Expansion / Connectivity | |
| Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) 1 x management - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | LCD display, audible alarm |
| Compliant Standards | FCC Class A certified, cUL, NOM, UL 1778 |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
