Details
Main Specifications

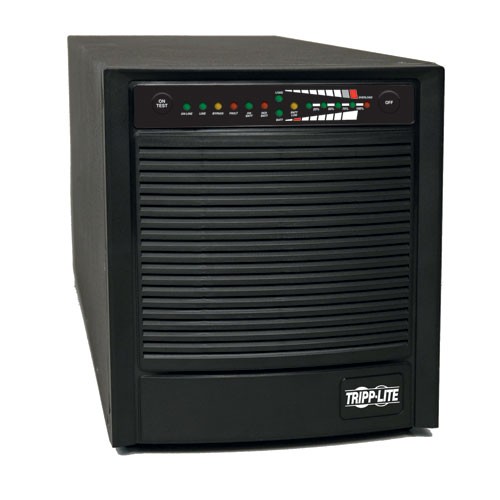

| Product Description | Tripp Lite SmartOnLine SU1500XL - UPS - 1.2 kW - 1500 VA |
| Device Type | UPS - external |
| Weight | 48.9 lbs |
| Input Voltage | AC 100/110/120 V |
| Output Voltage | AC 100/110/120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 1.2 kW / 1500 VA |
| Output connector(s) | 6 x power NEMA 5-15 |
| Battery | Lead acid expandable |
| Battery Form Factor | Internal |
| Run Time (Up To) | 4.5 min at full load |
| Networking | RS-232, USB |
| Dimensions (WxDxH) | 9.1 in x 19.5 in x 10.2 in |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - external |
| Battery Enclosure Type | Internal |
| Color | Attractive black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 100/110/120 V |
| Input Voltage Range | AC 65 - 138 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 6 x power NEMA 5-15 |
| Output Voltage | AC 100/110/120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 1.2 kW / 1500 VA |
| Dataline Surge Protection | Network/phone line - RJ-45 |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 570 Joules |
| Circuit Protection | Circuit breaker |
| Battery | |
| Type | Expandable |
| Technology | Lead acid |
| Voltage Provided | 48 V |
| Run Time (Up To) | 4.5 min at full load |
| Recharge Time | 6 hours |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) - RJ-11 |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 10 ft 1 x USB cable - external 1 x serial cable - external |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm, emergency power off, LED indicators |
| Compliant Standards | CSA, NOM, UL 1778, FCC Part 68, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 45 dB |
| Dimensions & Weight | |
| Width | 9.1 in |
| Depth | 19.5 in |
| Height | 10.2 in |
| Weight | 48.9 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13 in |
| Shipping Depth | 24 in |
| Shipping Height | 15.2 in |
| Shipping Weight | 55.6 lbs |
