Details
Main Specifications

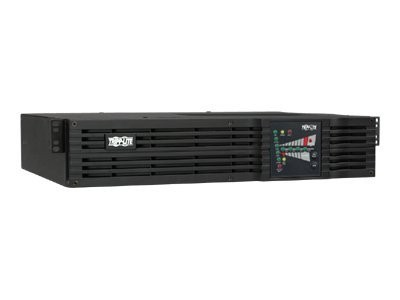

| Product Description | Tripp Lite SmartOnLine SU2200RTXL2Ua - UPS - 1.6 kW - 2200 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 19" - 2U |
| Weight | 47.4 lbs |
| Input Voltage | AC 110/120 V |
| Output Voltage | AC 110/120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 1.6 kW / 2200 VA |
| Output connector(s) | 1 x power NEMA L5-20 ¦ 6 x power NEMA 5-15/20 |
| Battery Form Factor | Plug-in module |
| Run Time (Up To) | 4.5 min at full load |
| Networking | RS-232, USB |
| Dimensions (WxDxH) | 17.5 in x 19 in x 3.5 in |
| Manufacturer Warranty | 2 years warranty |
| Designed For | AVR AVR900U |
| General | |
| Device Type | UPS - rack-mountable |
| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 110/120 V |
| Input Voltage Range | AC 65 - 150 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-20 |
| Power Output Connectors Details | 1 x power NEMA L5-20 6 x power NEMA 5-15/20 |
| Output Voltage | AC 110/120 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 1.6 kW / 2200 VA |
| Dataline Surge Protection | Phone line - RJ-11 Network - RJ-45 |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 570 Joules |
| Circuit Protection | Circuit breaker |
| Battery | |
| Voltage Provided | 48 V |
| Run Time (Up To) | 4.5 min at full load 14 min at half load |
| Recharge Time | 6 hours |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin mini-USB Type B 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - integrated - 10 ft 1 x USB cable - external 1 x serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm, emergency power off, internal bypass, LED indicators, cold-start function, disconnect switch, cooling fan |
| Compliant Standards | CSA, NOM, UL 1778, FCC Part 68, RoHS, FCC Part 15 A |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 19 in |
| Height | 3.5 in |
| Weight | 47.4 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 20.2 in |
| Shipping Depth | 24 in |
| Shipping Height | 3.9 in |
| Shipping Weight | 57.3 lbs |
| Compatibility Information | |
| Designed For | Tripp Lite AVR AVR900U |
