Details
Main Specifications

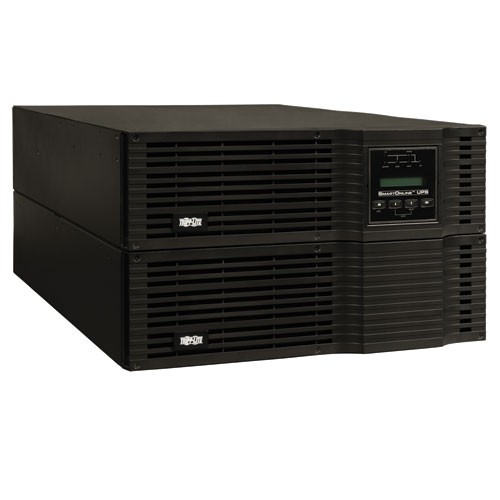

| Product Description | Tripp Lite SmartOnLine 6K - UPS - 4.2 kW - 6000 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 19" |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 4.2 kW / 6000 VA |
| Output connector(s) | Hardwire |
| Batteries Qty | 1 |
| Run Time (Up To) | 10 min at full load |
| Manufacturer Warranty | 2 years warranty |
| Designed For | SmartOnLine SU6000RT3UHVXL |
| General | |
| Device Type | UPS - rack-mountable |
| Rack Size | 19" |
| Color | Black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage Range | AC 156 - 276 V |
| Frequency Required | 45 - 65 Hz |
| Input Connector(s) | Hardwire |
| Power Output Connectors Details | Hardwire |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 4.2 kW / 6000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Quantity | 1 |
| Voltage Provided | 240 V |
| Run Time (Up To) | 10 min at full load |
| Recharge Time | 2 hours |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | LCD display |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - parts and labor - 2 years - carry-in |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% |
| Compatibility Information | |
| Designed For | Tripp Lite SmartOnLine SU6000RT3UHVXL |
