Details
Main Specifications

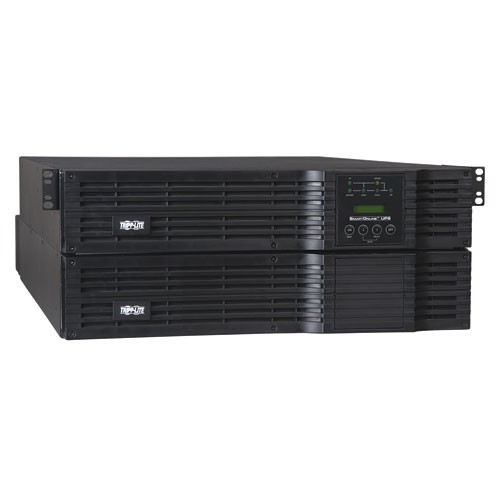

| Product Description | Tripp Lite SmartOnLine SU8000RT4U - UPS - 5.6 kW - 8000 VA |
| Device Type | UPS - external |
| Rack Size | 19" - 4U |
| Weight | 177.2 lbs |
| Output Voltage | AC 208/240 V ± 2% ( 60 Hz ) |
| Power Capacity | 5.6 kW / 8000 VA |
| Output connector(s) | 2 x power NEMA L6-20 ¦ 2 x power NEMA L6-30 ¦ 4 x power NEMA 5-15/20 |
| Battery | Lead acid expandable |
| Battery Form Factor | Plug-in module |
| Run Time (Up To) | 5 min at full load |
| Networking | RS-232, USB |
| Dimensions (WxDxH) | 17.5 in x 32.6 in x 7 in |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - external |
| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 4U |
| Rack Size | 19" |
| Color | Attractive black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage Range | AC 65 - 140 V |
| Input Connector(s) | Hardwire |
| Power Output Connectors Details | 2 x power NEMA L6-20 2 x power NEMA L6-30 4 x power NEMA 5-15/20 |
| Output Voltage | AC 208/240 V ± 2% ( 60 Hz ) |
| Power Capacity | 5.6 kW / 8000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Type | Expandable |
| Technology | Lead acid |
| Voltage Provided | 192 V |
| Run Time (Up To) | 5 min at full load |
| Recharge Time | 6 hours |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) Management (USB) 1 x EPO (emergency power off) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Hot-swappable , audible alarm, LCD display, LED indicators, built-in bypass switch |
| Compliant Standards | ANSI C62.41, NOM, UL 1778, CSA C22.2 |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 60 dBA |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 32.6 in |
| Height | 7 in |
| Weight | 177.2 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23 in |
| Shipping Depth | 37 in |
| Shipping Height | 13 in |
| Shipping Weight | 212.1 lbs |
