Details
Main Specifications

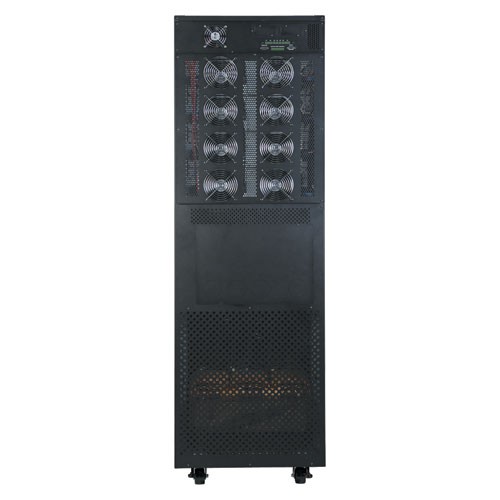

| Product Description | Tripp Lite SmartOnLine SU80K - power array - 64 kW - 80000 VA |
| Device Type | Power array - external |
| Weight | 1287.5 lbs |
| Input Wiring | 3-phase WYE (star) |
| Input Voltage | AC 120/208 V |
| Output Voltage | AC 120/208 V ± 1% ( 50/60 Hz ) |
| Power Capacity | 64 kW / 80000 VA |
| Power Redundancy | Yes |
| Output connector(s) | Hardwire 4-wire |
| Battery | No battery |
| Networking | RS-232 |
| Dimensions (WxDxH) | 20.5 in x 33.5 in x 66.9 in |
| Manufacturer Warranty | 1 year warranty |
| General | |
| Device Type | Power array - external |
| Color | Attractive black |
| Power Device | |
| UPS Technology | On-line |
| Power Modules Qty | 4 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Input Voltage | AC 120/208 V |
| Input Voltage Range | AC 94 - 150 / 163 - 260 V |
| Input Wiring | 3-phase WYE (star) |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | Hardwire 4-wire |
| Power Output Connectors Details | Hardwire 4-wire |
| Output Voltage | AC 120/208 V ± 1% ( 50/60 Hz ) |
| Power Capacity | 64 kW / 80000 VA |
| Power Capacity (of Single Unit) | 20000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 4675 Joules |
| Circuit Protection | Circuit breaker |
| Battery | |
| Type | No battery |
| Networking | |
| Remote Management Interface | RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) |
| Expansion Slot(s) | 2 (total) / 2 (free) x expansion slot |
| Miscellaneous | |
| Features | Emergency power off, LCD display, Parallel Capability, LED indicators |
| Compliant Standards | UL, cUL, NOM, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
| Service & Support Details | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% |
| Dimensions & Weight | |
| Width | 20.5 in |
| Depth | 33.5 in |
| Height | 66.9 in |
| Weight | 1287.5 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 28.7 in |
| Shipping Depth | 45.7 in |
| Shipping Height | 76.4 in |
