Details
Main Specifications

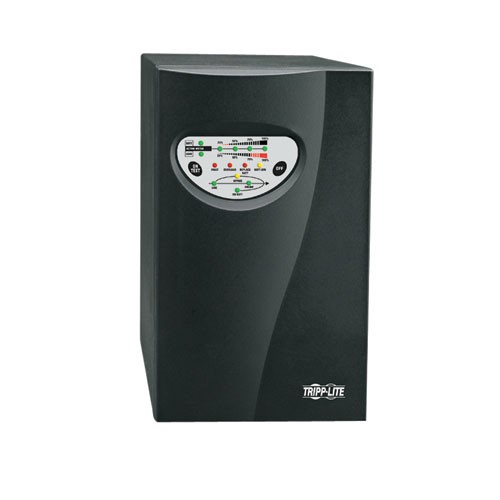

| Product Description | Tripp Lite SmartOnLine SUINT1000XL - UPS - 700 Watt - 1000 VA |
| Device Type | UPS - external |
| Weight | 30.6 lbs |
| Input Voltage | AC 220/230/240 V |
| Output Voltage | AC 220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 700 Watt / 1000 VA |
| Output connector(s) | 4 x power IEC 320 EN 60320 C13 |
| Battery | Lead acid |
| Battery Form Factor | Internal |
| Run Time (Up To) | 5 min at full load |
| Dimensions (WxDxH) | 5.9 in x 14.4 in x 9.5 in |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - external |
| Battery Enclosure Type | Internal |
| Color | Attractive black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 220/230/240 V |
| Input Voltage Range | AC 80 - 280 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power IEC 320 EN 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 320 EN 60320 C13 |
| Output Voltage | AC 220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 700 Watt / 1000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Technology | Lead acid |
| Voltage Provided | 36 V |
| Run Time (Up To) | 5 min at full load |
| Recharge Time | 4 hours |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Miscellaneous | |
| Cables Included | 2 x power cable Serial cable |
| Features | Audible alarm, LED indicators |
| Compliant Standards | RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Dimensions & Weight | |
| Width | 5.9 in |
| Depth | 14.4 in |
| Height | 9.5 in |
| Weight | 30.6 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.5 in |
| Shipping Depth | 19.9 in |
| Shipping Height | 12.8 in |
| Shipping Weight | 37.3 lbs |
