Details
Main Specifications

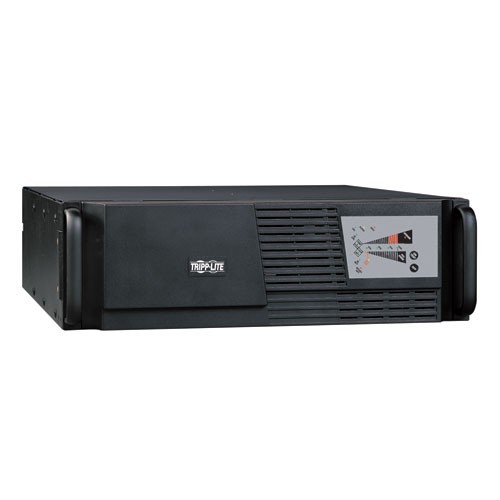

| Product Description | Tripp Lite SmartOnLine SUINT3000RTXL3U - UPS - 2.4 kW - 3000 VA |
| Device Type | UPS - rack-mountable |
| Rack Size | 19" - 3U |
| Weight | 75 lbs |
| Input Voltage | AC 200/208/220/230/240 V |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 2.4 kW / 3000 VA |
| Output connector(s) | 8 x power IEC 320 EN 60320 C13 ¦ 2 x power IEC 320 EN 60320 C19 |
| Battery | Lead acid |
| Battery Form Factor | Internal |
| Run Time (Up To) | 6 min at full load |
| Dimensions (WxDxH) | 17.3 in x 19.8 in x 5.2 in |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS - rack-mountable |
| Battery Enclosure Type | Internal |
| Height (Rack Units) | 3U |
| Rack Size | 19" |
| Color | Black |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 200/208/220/230/240 V |
| Input Voltage Range | AC 160 - 275 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power IEC 320 EN 60320 C20 |
| Power Output Connectors Details | 8 x power IEC 320 EN 60320 C13 2 x power IEC 320 EN 60320 C19 |
| Output Voltage | AC 200/208/220/230/240 V ± 2% ( 50/60 Hz ) |
| Power Capacity | 2.4 kW / 3000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
| Battery | |
| Technology | Lead acid |
| Voltage Provided | 72 V |
| Run Time (Up To) | 6 min at full load |
| Recharge Time | 2 hours |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x serial cable - external 1 x power cable - 10 ft |
| Rack Mounting Kit | Included |
| Features | Emergency power off, audible alarm |
| Compliant Standards | UL, ANSI C62.41 |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | 5 °F |
| Max Storage Temperature | 122 °F |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 19.8 in |
| Height | 5.2 in |
| Weight | 75 lbs |
