Details
Main Specifications

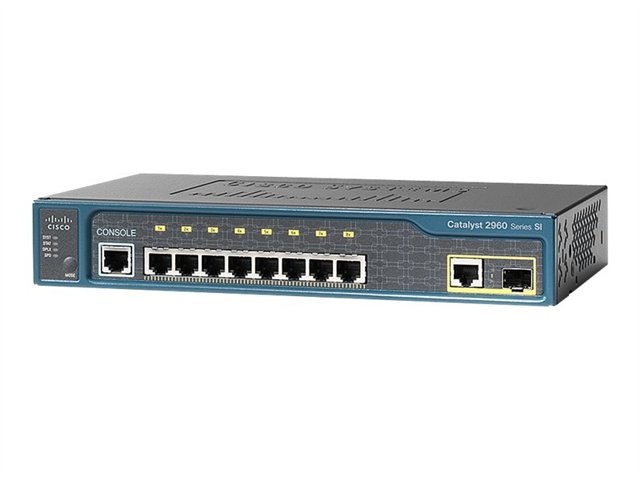

| Product Description | Cisco Catalyst 2960-8TC-S - switch - 8 ports - managed - desktop |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Desktop - 1U |
| Ports | 8 x 10/100 + 1 x combo Gigabit SFP |
| Performance | Switching capacity : 16 Gbps ¦ Forwarding performance (64-byte packet size) : 2.7 Mpps |
| MAC Address Table Size | 8K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2 |
| Features | Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 10.6 in x 6.4 in x 1.7 in |
| Weight | 3 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Desktop - 1U |
| Ports | 8 x 10/100 + 1 x combo Gigabit SFP |
| Performance | Switching capacity : 16 Gbps Forwarding performance (64-byte packet size) : 2.7 Mpps |
| MAC Address Table Size | 8K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2 |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) |
| RAM | 64 MB |
| Flash Memory | 32 MB flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Expansion / Connectivity | |
| Interfaces | 8 x 10Base-T/100Base-TX - RJ-45 1 x SFP (mini-GBIC) 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 30 Watt |
| Features | Redundant Power System (RPS) connector |
| Miscellaneous | |
| Width | 10.6 in |
| Depth | 6.4 in |
| Height | 1.7 in |
| Weight | 3 lbs |
| Rack Mounting Kit | Optional |
| MTBF | 615,549 hour(s) |
| Compliant Standards | TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A |
| Software / System Requirements | |
| Software Included | Cisco IOS LAN Lite |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - replacement - lifetime Limited warranty - power supply and fans - 5 years New releases update |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 95% (non-condensing) |
