Main Specifications

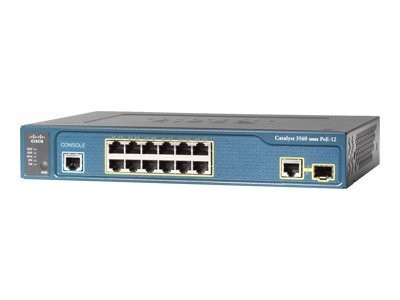

| Product Description | Cisco Catalyst 3560-12PC - switch - 12 ports - managed - desktop |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Desktop - 1U |
| Ports | 12 x 10/100 + 1 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH-2 |
| Features | Auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 10.6 in x 9.1 in x 1.7 in |
| Weight | 5.1 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 12 ports - L3 - managed |
| Enclosure Type | Desktop - 1U |
| Ports | 12 x 10/100 + 1 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH-2 |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 128 MB |
| Flash Memory | 32 MB flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, power, system |
| Expansion / Connectivity | |
| Interfaces | 12 x 10Base-T/100Base-TX - RJ-45 - PoE 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x SFP (mini-GBIC) |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous | |
| Width | 10.6 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.1 lbs |
| Rack Mounting Kit | Optional |
| MTBF | 406,470 hour(s) |
| Compliant Standards | FCC Class A certified, UL, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CB, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00, MIC |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% |
