Details
Main Specifications

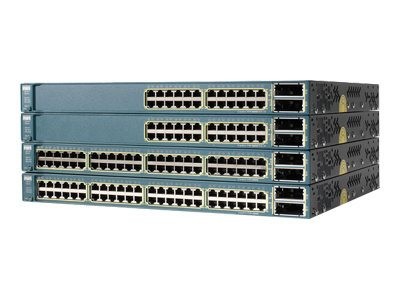

| Product Description | Cisco Catalyst 3560E-48TD - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 + 2 x X2 |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 |
| Features | Full duplex capability, layer 3 switching, layer 2 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.5 in x 18.1 in x 1.8 in |
| Weight | 19 lbs |
| Manufacturer Warranty | 90 days warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 + 2 x X2 |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Full duplex capability, layer 3 switching, layer 2 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 128 MB |
| Flash Memory | 64 MB flash |
| Status Indicators | Link activity, port transmission speed, port duplex mode, bandwidth utilization %, power, link OK, system |
| Expansion / Connectivity | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management 2 x X2 |
| Power | |
| Power Device | Power supply - plug-in module |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 151 Watt |
| Features | Redundant Power System (RPS) connector |
| Miscellaneous | |
| Width | 17.5 in |
| Depth | 18.1 in |
| Height | 1.8 in |
| Weight | 19 lbs |
| MTBF | 166,907 hour(s) |
| Compliant Standards | FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, AS/NZ 3548 Class A, FCC Part 15, MIC, RoHS |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | 90 days warranty |
| Service & Support Details | Limited warranty - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 0 - 95% |
