Details
Main Specifications

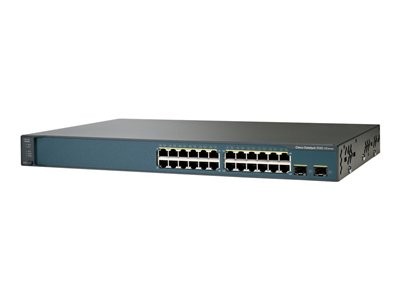

| Product Description | Cisco Catalyst 3560V2-24TS - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100 + 2 x SFP |
| Performance | Switching capacity : 32 Gbps |
| Capacity | Switched virtual interfaces (SVIs) : up to 1000 ¦ Virtual interfaces (VLANs) : 1000 |
| MAC Address Table Size | 12K entries |
| Jumbo Frame Support | 9016 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Features | Layer 3 switching, layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.4 in x 11.6 in x 1.7 in |
| Weight | 8.2 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100 + 2 x SFP |
| Performance | Switching capacity : 32 Gbps |
| Capacity | Switched virtual interfaces (SVIs) : up to 1000 Virtual interfaces (VLANs) : 1000 |
| MAC Address Table Size | 12K entries |
| Jumbo Frame Support | 9016 |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH |
| Encryption Algorithm | SSL |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 3 switching, layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Flash Memory | 32 MB flash |
| Status Indicators | Link activity, port duplex mode, bandwidth utilization %, power, link OK, system |
| Expansion / Connectivity | |
| Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 1 x console - RJ-45 - management 2 x Ethernet 1000 - SFP (mini-GBIC) |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Miscellaneous | |
| Width | 17.4 in |
| Depth | 11.6 in |
| Height | 1.7 in |
| Weight | 8.2 lbs |
| MTBF | 377,260 hour(s) |
| Compliant Standards | GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime Limited warranty - power supply and fans - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% |
