Details
Main Specifications

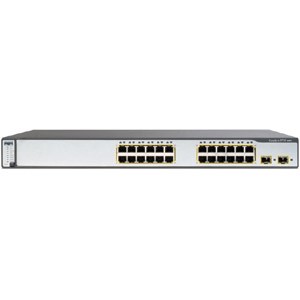

| Product Description | Cisco Catalyst 3750-24PS SMI - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100 + 2 x SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c |
| Features | Full duplex capability, layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, manageable, stackable, IPv6 support |
| Compliant Standards | IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.5 in x 11.9 in x 1.7 in |
| Weight | 11.7 lbs |
| General | |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100 + 2 x SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Full duplex capability, layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, manageable, stackable, IPv6 support |
| Compliant Standards | IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 128 MB |
| Flash Memory | 16 MB flash |
| Status Indicators | Link activity, port transmission speed, port duplex mode, system |
| Expansion / Connectivity | |
| Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 - PoE Network stack device : 1 x RJ-45 - management 2 x SFP (mini-GBIC) |
| Installed Modules Qty (Max) | 0 (installed) / 2 (max) |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Miscellaneous | |
| Width | 17.5 in |
| Depth | 11.9 in |
| Height | 1.7 in |
| Weight | 11.7 lbs |
| Compliant Standards | FCC Class A certified, UL, TUV GS, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CB, AS/NZ 3548 Class A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% |
