Main Specifications

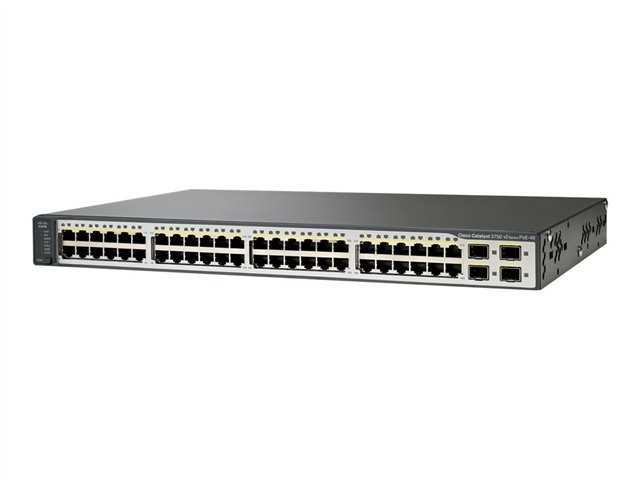

| Product Description | Cisco Catalyst 3750V2-48PS - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x 10/100 + 4 x SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
| Features | Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.4 in x 11.6 in x 1.7 in |
| Weight | 11 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x 10/100 + 4 x SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 3 switching, DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Flash Memory | 32 MB flash |
| Status Indicators | Port status, link activity, link OK |
| Expansion / Connectivity | |
| Interfaces | 48 x 10Base-T/100Base-TX - RJ-45 - PoE 1 x console - RJ-45 - management 4 x SFP (mini-GBIC) |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 71 Watt |
| Features | Redundant Power System (RPS) connector |
| Miscellaneous | |
| Width | 17.4 in |
| Depth | 11.6 in |
| Height | 1.7 in |
| Weight | 11 lbs |
| Compliant Standards | GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% |
