Details
Main Specifications

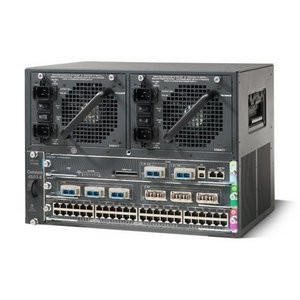

| Product Description | Cisco Catalyst 4503-E - switch - rack-mountable - with Cisco Supervisor Engine 6L-E, Catalyst 4500 E-Series Line Card |
| Device Type | Switch - with Cisco Supervisor Engine 6L-E, Catalyst 4500 E-Series Line Card |
| Enclosure Type | Rack-mountable - 7U |
| Power Over Ethernet (PoE) | PoE |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.3 in x 12.5 in x 12.2 in |
| Weight | 32.2 lbs |
| General | |
| Device Type | Switch - with Cisco Supervisor Engine 6L-E, Catalyst 4500 E-Series Line Card |
| Enclosure Type | Rack-mountable - 7U |
| Power Over Ethernet (PoE) | PoE |
| Expansion / Connectivity | |
| Expansion Slot(s) | 3 (total) / 3 (free) x expansion slot |
| Installed Modules Qty (Max) | 2 (installed) / 3 (max) |
| Power | |
| Power Device | Power supply - hot-plug - plug-in module |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Miscellaneous | |
| Width | 17.3 in |
| Depth | 12.5 in |
| Height | 12.2 in |
| Weight | 32.2 lbs |
| Rack Mounting Kit | Included |
| Compliant Standards | NEBS level 3, FCC Class A certified, EN 60950, EN 61000-3-2, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ACA TS001, AS/NZS 3260, FCC Part 68, AS/NZ 3548 Class A, JATE, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 167 °F |
