Details
Main Specifications

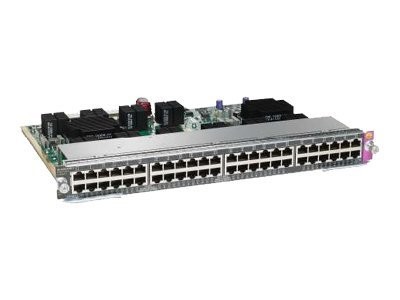

| Product Description | Cisco Line Card E-Series Premium - switch - 48 ports - plug-in module |
| Device Type | Switch - 48 ports |
| Enclosure Type | Plug-in module |
| Ports | 48 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| Features | Flow control, power over Ethernet (PoE), half duplex mode, full duplex mode, Jumbo Frames support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3x |
| Dimensions (WxDxH) | 14.3 in x 10.7 in x 1.2 in |
| Designed For | Catalyst 4506-E, 4507R-E, 4510R-E |
| General | |
| Device Type | Switch - 48 ports |
| Enclosure Type | Plug-in module |
| Compatible Slots | 1 x expansion slot |
| Ports | 48 x 10/100/1000 |
| Power Over Ethernet (PoE) | PoE |
| Features | Flow control, power over Ethernet (PoE), half duplex mode, full duplex mode, Jumbo Frames support |
| Compliant Standards | IEEE 802.3af, IEEE 802.3x |
| Expansion / Connectivity | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE |
| Miscellaneous | |
| Width | 14.3 in |
| Depth | 10.7 in |
| Height | 1.2 in |
| Compliant Standards | NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, CSA 22.2 No. 60950, AS/NZS 3548, FCC Part 15 A |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | |
| Designed For | Cisco Catalyst 4506-E, 4507R-E, 4510R-E |
