Details
Main Specifications

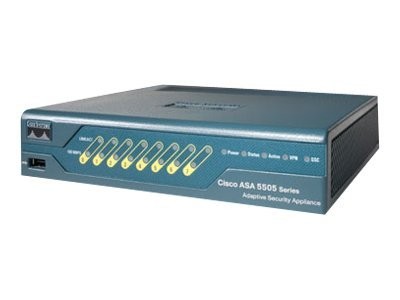

| Product Description | Cisco ASA 5505 VPN Edition - security appliance |
| Device Type | Security appliance |
| License Qty | 50 users |
| Enclosure Type | External |
| Dimensions (WxDxH) | 7.9 in x 6.9 in x 1.7 in |
| Weight | 4 lbs |
| RAM Installed ( Max ) | 256 MB |
| Flash Memory Installed (Max) | 64 MB flash |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput : 150 Mbps ¦ VPN throughput : 100 Mbps |
| Capacity | IPSec VPN peers : 10 ¦ SSL VPN peers : 10 ¦ Concurrent sessions : 10000 |
| Features | Firewall protection, DMZ port, VPN support, VLAN support, wall mountable |
| Power | AC 120/230 V ( 50/60 Hz ) |
| General | |
| Device Type | Security appliance |
| Installed Modules Qty (Max) | 0 ( 1 ) |
| Width | 7.9 in |
| Depth | 6.9 in |
| Height | 1.7 in |
| Weight | 4 lbs |
| Processor / Memory / Storage | |
| RAM Installed ( Max ) | 256 MB |
| Flash Memory Installed (Max) | 64 MB flash |
| Networking | |
| Form Factor | External |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput : 150 Mbps VPN throughput : 100 Mbps |
| Capacity | IPSec VPN peers : 10 SSL VPN peers : 10 Concurrent sessions : 10000 |
| Features | Firewall protection, DMZ port, VPN support, VLAN support, wall mountable |
| Encryption Algorithm | SSL |
| Expansion / Connectivity | |
| Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 6 x network - Ethernet 10Base-T/100Base-TX - RJ-45 2 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 3 x Hi-Speed USB - 4 pin USB Type A 1 x management - console - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, VCCI Class B ITE, CISPR 22 Class B, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, UL 60950, CSA 22.2 No. 60950, EN55022 Class B, AS/NZ 3548 Class B, FCC Part 15 |
| Power | |
| Power Device | Power adapter - external |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 95% |
