Details
Main Specifications

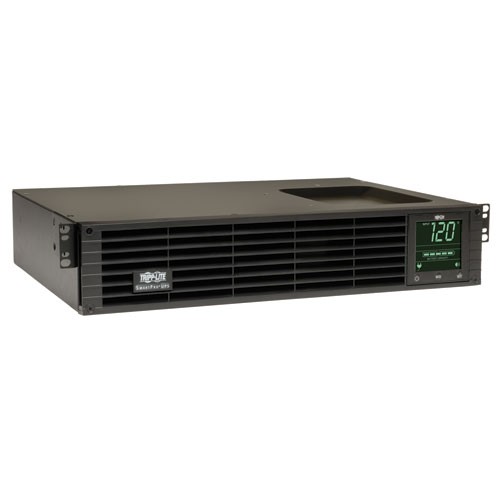

| Product Description | Tripp Lite SmartPro 1500RM2UN - UPS - 1.35 kW - 1500 VA |
| Device Type | UPS - external |
| Rack Size | 19" - 2U |
| Weight | 46.5 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% ( 60 Hz ) |
| Power Capacity | 1.35 kW / 1500 VA |
| Output connector(s) | 8 x power NEMA 5-15 |
| Battery Form Factor | Plug-in module |
| Run Time (Up To) | 4.5 min at full load |
| Networking | Ethernet, RS-232, USB |
| Remote Management Protocol | SNMP |
| Dimensions (WxDxH) | 17.5 in x 13.5 in x 3.5 in |
| Manufacturer Warranty | 3 years warranty with product registration |
| General | |
| Device Type | UPS - external |
| Battery Enclosure Type | Plug-in module |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 83 - 147 V |
| Frequency Required | 60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Power Output Connectors Details | 8 x power NEMA 5-15 |
| Output Voltage | AC 120 V ± 5% ( 60 Hz ) |
| Power Capacity | 1.35 kW / 1500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 570 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 95%+ |
| Battery | |
| Voltage Provided | 36 V |
| Run Time (Up To) | 4.5 min at full load 13 min at half load |
| Recharge Time | 4.5 hours |
| Networking | |
| Remote Management Interface | Ethernet, RS-232, USB |
| Remote Management Protocol | SNMP |
| Expansion / Connectivity | |
| Interfaces | 1 x management (Ethernet) - RJ-45 1 x management (USB) 1 x management (RS-232) 1 x EPO (emergency power off) |
| Expansion Slot(s) | 1 (total) / 0 (free) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - 10 ft 1 x USB cable - external 1 x serial cable - external |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries |
| Compliant Standards | FCC Class B certified, CSA, NOM, UL 1778 |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty with product registration |
| Service & Support Details | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 13.5 in |
| Height | 3.5 in |
| Weight | 46.5 lbs |
