Details
Main Specifications

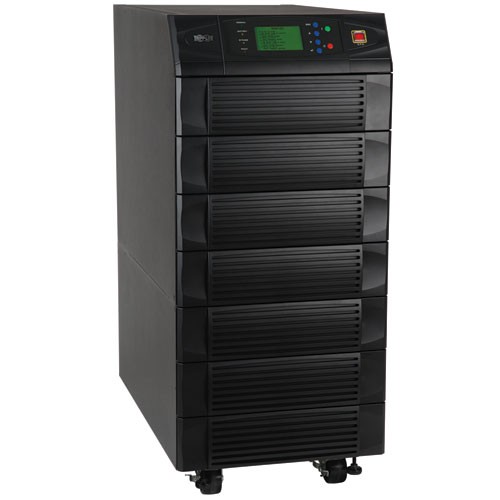

| Product Description | Tripp Lite SmartOnLine SU40KX - power array - 32 kW - 40000 VA |
| Device Type | Power array - external |
| Weight | 908 lbs |
| Input Wiring | 3-phase WYE (star) |
| Input Voltage | AC 220/380 - 230/400 - 240/415V |
| Output Voltage | AC 220/380V; 230/400V; 240/415V ( 50/60 Hz ) |
| Power Capacity | 32 kW / 40000 VA |
| Power Redundancy | Yes |
| Output connector(s) | Hardwire 4-wire |
| Battery | Lead acid |
| Battery Form Factor | Internal |
| Run Time (Up To) | 5.5 min at full load |
| Networking | RS-232 |
| Dimensions (WxDxH) | 20.5 in x 33.7 in x 45.8 in |
| Manufacturer Warranty | 2 year limited warranty |
| General | |
| Device Type | Power array - external |
| Battery Enclosure Type | Internal |
| Color | Attractive black |
| Power Device | |
| UPS Technology | On-line |
| Power Modules Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+1 |
| Input Voltage | AC 220/380 - 230/400 - 240/415V |
| Input Voltage Range | AC 220/380 - 230/400 - 240/415V |
| Input Wiring | 3-phase WYE (star) |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | Hardwire 4-wire |
| Power Output Connectors Details | Hardwire 4-wire |
| Output Voltage | AC 220/380V; 230/400V; 240/415V ( 50/60 Hz ) |
| Power Capacity | 32 kW / 40000 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 5950 Joules |
| Circuit Protection | Circuit breaker |
| Battery | |
| Technology | Lead acid |
| Voltage Provided | 480 V |
| Run Time (Up To) | 5.5 min at full load |
| Recharge Time | 4 hours |
| Networking | |
| Remote Management Interface | RS-232 |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) 1 x management - 9 pin D-Sub (DB-9) |
| Expansion Slot(s) | 2 (total) / 2 (free) x expansion slot |
| Miscellaneous | |
| Features | Emergency power off, LCD display, Parallel Capability, LED indicators |
| Compliant Standards | UL, cUL, NOM, RoHS |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 year warranty |
| Service & Support Details | Limited warranty - 2 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% |
| Dimensions & Weight | |
| Width | 20.5 in |
| Depth | 33.7 in |
| Height | 45.8 in |
| Weight | 908 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 28.5 in |
| Shipping Depth | 55.0 in |
| Shipping Height | 85.6 in |
| Shipping Weight | 1058 lbs |
