Details
Main Specifications

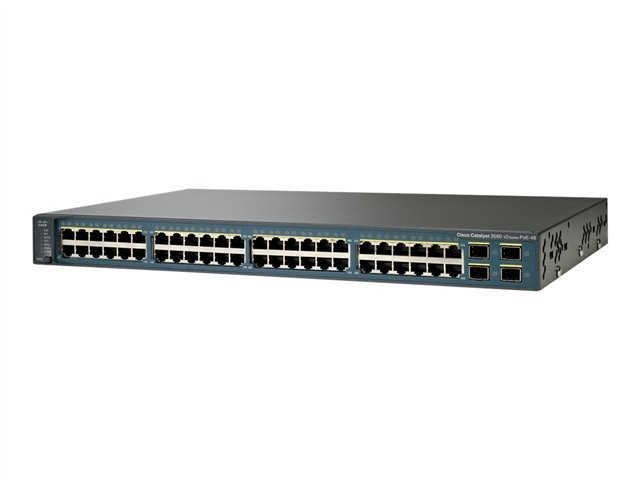

| Product Description | Cisco Catalyst 3560V2-48PS - switch - 48 ports - managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x 10/100 + 4 x SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
| Features | Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), MAC address filtering, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.4 in x 11.6 in x 1.7 in |
| Weight | 11 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 48 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x 10/100 + 4 x SFP |
| Power Over Ethernet (PoE) | PoE |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, static IP routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c |
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Layer 3 switching, auto-sensing per device, DHCP support, auto-negotiation, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), MAC address filtering, IPv6 support, Spanning Tree Protocol (STP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Flash Memory | 32 MB flash |
| Status Indicators | Port status, link activity, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply) |
| Expansion / Connectivity | |
| Interfaces | 24 x 10Base-T/100Base-TX - RJ-45 - PoE 24 x 10Base-T/100Base-TX - RJ-45 1 x console - RJ-45 - management 4 x SFP (mini-GBIC) |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Features | Redundant Power System (RPS) connector |
| Miscellaneous | |
| Width | 17.4 in |
| Depth | 11.6 in |
| Height | 1.7 in |
| Weight | 11 lbs |
| MTBF | 206,041 hour(s) |
| Compliant Standards | GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% |
