Details
Main Specifications

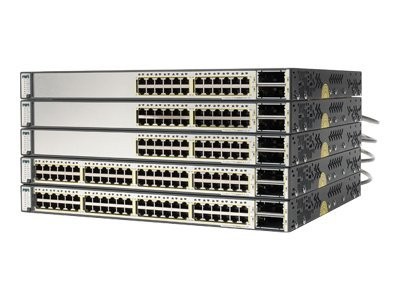

| Product Description | Cisco Catalyst 3750E-24TD - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x X2 |
| MAC Address Table Size | 12K entries |
| Routing Protocol | RIP-1, RIP-2, EIGRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH |
| Features | Layer 3 switching, layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 17.5 in x 18.1 in x 1.8 in |
| Weight | 17.9 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x X2 |
| MAC Address Table Size | 12K entries |
| Max Units In A Stack | 9 |
| Routing Protocol | RIP-1, RIP-2, EIGRP, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 3 switching, layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 256 MB |
| Flash Memory | 64 MB flash |
| Status Indicators | Link activity, port transmission speed, port duplex mode, bandwidth utilization %, power, link OK, system |
| Expansion / Connectivity | |
| Interfaces | 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - RJ-45 - management 1 x 10Base-T/100Base-TX - RJ-45 - management Network stack device : 1 x x 2 2 x X2 |
| Power | |
| Power Device | Power supply - plug-in module |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 99 Watt |
| Features | Redundant Power System (RPS) connector |
| Miscellaneous | |
| Width | 17.5 in |
| Depth | 18.1 in |
| Height | 1.8 in |
| Weight | 17.9 lbs |
| Compliant Standards | FCC Class A certified, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, FCC Part 15, MIC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1 |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 10 - 85% |
