Details
Main Specifications

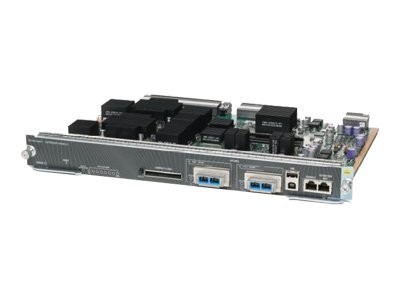

| Product Description | Cisco Supervisor Engine 6-E - control processor |
| Device Type | Control processor |
| Enclosure Type | Plug-in module |
| Processor | 1 x 1.3 GHz |
| RAM Installed ( Max ) | 512 MB ( 1 GB ) |
| Ports Qty | 2 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Network / Transport Protocol | NTP, ICMP/IP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3 |
| Performance | Switching capacity : 320 Gbps ¦ IPv4 routing : 250 Mbps ¦ IPv6 routing : 125 Mbps |
| Capacity | QoS hardware entries : 64000 ¦ Security services entries : 64000 ¦ Hardware forwarding entries : 256000 ¦ Multicast entries (IPv4) : 128000 ¦ Multicast entries (IPv6) : 64000 ¦ MAC addresses : 55000 ¦ Virtual interfaces (VLANs) : 4096 ¦ IPv6 routes : 128000 ¦ IPv4 routes : 256000 |
| Features | Auto-negotiation, VLAN support, IGMP snooping, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping |
| OS Required | Cisco IOS 12.2(40)SG |
| Designed For | Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E |
| General | |
| Device Type | Control processor |
| Installed Modules Qty (Max) | 0 ( 2 ) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x 1.3 GHz |
| RAM Installed ( Max ) | 512 MB ( 1 GB ) - SDRAM |
| Hard Drive | None. |
| Networking | |
| Form Factor | Plug-in module |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Switching Protocol | Ethernet |
| Network / Transport Protocol | NTP, ICMP/IP |
| Routing Protocol | OSPF, RIP, BGP-4, RIP-2, BGP, EIGRP, HSRP, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3 |
| Performance | Switching capacity : 320 Gbps IPv4 routing : 250 Mbps IPv6 routing : 125 Mbps |
| Capacity | QoS hardware entries : 64000 Security services entries : 64000 Hardware forwarding entries : 256000 Multicast entries (IPv4) : 128000 Multicast entries (IPv6) : 64000 MAC addresses : 55000 Virtual interfaces (VLANs) : 4096 IPv6 routes : 128000 IPv4 routes : 256000 |
| Status Indicators | Link activity, bandwidth utilization %, link OK, status |
| Features | Auto-negotiation, VLAN support, IGMP snooping, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Expansion / Connectivity | |
| Expansion Slot(s) | 2 (total) / 2 (free) x X2 1 (total) / 1 (free) x CompactFlash Card |
| Interfaces | 1 x management - console - RJ-45 1 x management - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x USB - 4 pin USB Type A 1 x USB - 4 pin USB Type B |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, ICES-003 Class A, FCC CFR47 Part 15 |
| Software / System Requirements | |
| OS Required | Cisco IOS 12.2(40)SG |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% |
| Compatibility Information | |
| Designed For | Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E |
