Details
Main Specifications

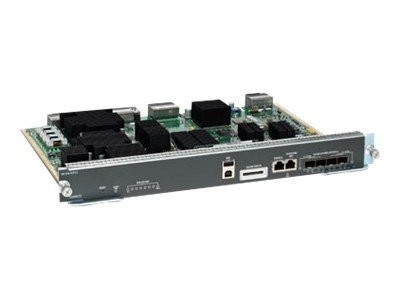

| Product Description | Cisco Supervisor Engine 7-E - control processor |
| Device Type | Control processor |
| Enclosure Type | Plug-in module |
| Processor | 1.5 GHz |
| RAM Installed ( Max ) | 2 GB ( 4 GB ) |
| Performance | Switching capacity : 848 Gbps ¦ Per-slot switching capacity : 48 Gbps ¦ IPv6 routing : 125 Mbps ¦ IPv4 routing : 250 Mbps |
| Capacity | QoS hardware entries : 128000 ¦ Security services entries : 128000 ¦ Virtual interfaces (VLANs) : 4096 ¦ Multicast entries (IPv4) : 70000 ¦ Multicast entries (IPv6) : 64000 ¦ Multicast entries (shared between IPv4 and IPv6) : 16000 ¦ MAC addresses : 55000 ¦ IPv6 routes : 128000 ¦ IPv4 routes : 256000 ¦ Spanning Tree Protocol instances : 3000 ¦ Switched virtual interfaces (SVIs) : 4096 ¦ NetFlow entries : 128000 |
| Features | Uplink, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Manufacturer Warranty | Limited lifetime warranty |
| General | |
| Device Type | Control processor |
| Processor / Memory / Storage | |
| Processors Installed | 1.5 GHz |
| RAM Installed ( Max ) | 2 GB ( 4 GB ) - SDRAM |
| Hard Drive | None. |
| Networking | |
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Routing Protocol | PIM-SM, PIM-DM, PIM-SSM |
| Performance | Switching capacity : 848 Gbps Per-slot switching capacity : 48 Gbps IPv6 routing : 125 Mbps IPv4 routing : 250 Mbps |
| Capacity | QoS hardware entries : 128000 Security services entries : 128000 Virtual interfaces (VLANs) : 4096 Multicast entries (IPv4) : 70000 Multicast entries (IPv6) : 64000 Multicast entries (shared between IPv4 and IPv6) : 16000 MAC addresses : 55000 IPv6 routes : 128000 IPv4 routes : 256000 Spanning Tree Protocol instances : 3000 Switched virtual interfaces (SVIs) : 4096 NetFlow entries : 128000 |
| Features | Uplink, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Expansion / Connectivity | |
| Expansion Slot(s) | 4 (total) / 4 (free) x SFP+ 1 (total) / 1 (free) x SD Memory Card |
| Interfaces | 1 x management - console - RJ-45 1 x management - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x USB - 4 pin USB Type A |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, CISPR 22 Class A, EN 61000-3-2, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZ 3548 Class B, AS/NZS 3260, ICES-003 Class A, FCC Part 15 A |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
