Details
Main Specifications

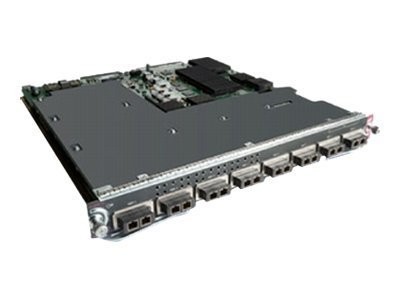

| Product Description | Cisco Catalyst 6900 Series 8-Port 10 Gigabit Ethernet Fiber Module with DFC4 - expansion module - 8 ports |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Dimensions (WxDxH) | 14.4 in x 16 in x 1.7 in |
| Ports Qty | 8 ports |
| Cabling Type | Ethernet 10GBase-X |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Performance | Switching fabric bandwidth : 80 Gbps |
| Capacity | ACL entries : 64000 ¦ NetFlow entries : 512000 |
| RAM | 2 GB |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq |
| Designed For | Catalyst 6503-E, 6504-E, 6506-E, 6506-E IDSM-2, 6509-E, 6509-E 10Gig, 6513-E |
| General | |
| Device Type | Expansion module - 8 ports |
| Form Factor | Plug-in module |
| Width | 14.4 in |
| Depth | 16 in |
| Height | 1.7 in |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-X |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Performance | Switching fabric bandwidth : 80 Gbps |
| Capacity | ACL entries : 64000 NetFlow entries : 512000 |
| Remote Management Protocol | RMON, SMON |
| Status Indicators | Link activity, status |
| Features | Weighted Random Early Detection (WRED), Jumbo Frames support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq |
| Processor / Memory | |
| RAM | 2 GB |
| Expansion / Connectivity | |
| Expansion Slot(s) | 8 (total) / 8 (free) x X2 |
| Compatible Slots | 1 x expansion slot |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, FCC CFR21 Part 1040, IEC 60950-1, EN 60950-1, IEC 60825-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with Supervisor Engine 720, 6509-E with WiSM Bundle, 6513-E |
